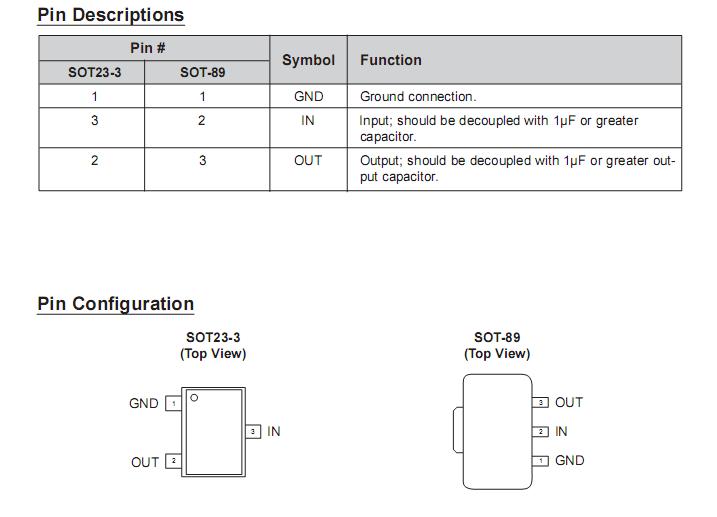

PinoutSpecifications 250mA output for SOT89 package 150mA output for SC59 package 20A quiescent current Low dropout: 200mV (typ) High accuracy: 2.0% Current limit protection Over-temperature protection Low temperature coefficient Factory-programmed output voltages: 1.8V to 3.5V ...
AAT3200: PinoutSpecifications 250mA output for SOT89 package 150mA output for SC59 package 20A quiescent current Low dropout: 200mV (typ) High accuracy: 2.0% Current limit protection Over-temp...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $.24 - .41 / Piece
Switching Converters, Regulators & Controllers High Efficiency 1.5x Fractional Chrg Pump
US $.58 - .58 / Piece
Switching Converters, Regulators & Controllers USB OTG 5V Charge Pump
Symbol | Description |
Value | Units |
VIN |
Input Voltage | -0.3 to 6 | V |
IOUT |
DC Output Current | PD /(VIN -V O) | mA |
TJ |
Operating Junction Temperature Range | -40 to 150 | °C |
TLEAD |
Maximum Soldering Temperature (at leads, 10 sec) | 300 | °C |
The AAT3200 PowerLinear OmniPower Low Dropout Linear Regulator is ideal for systems where a low-cost solution is required. This device features extremely low quiescent current which is typically 20A. Dropout voltage is also very low, typically 200mV. The AAT3200 has output short circuit and over-current protection. In addition, the device has an over-temperature protection circuit that will shutdown the LDO regulator during extended over-current events. Since only a small, 1F ceramic output capacitor is required, the AAT3200 is a truly cost effective voltage conversion solution. The AAT3200 is available in a space-saving SC59 package or an SOT89 for applications requiring increased power dissipation. The device is rated over the -40C to +85C temperature range.
The AAT3200 PowerLinear™ OmniPower low dropout (LDO) linear regulator is ideal for systems where a low-cost solution is required. This device features extremely low quiescent current which is typically 20A. Dropout voltage is also very low typically 200mV. The AAT3200 has output short- circuit and over-current protection. In addition, the device has an over-temperature protection circuit which will shut down the LDO regulator during extended over-current events.
The AAT3200 is available in a space-saving SOT23 package or a SOT-89 package for applications requiring increased power dissipation. The device is rated over a -40°C to +85°C temperature rang Since only a small, 1F ceramic output capacitor required, the AAT3200 is a truly cost-effective volt- age conversion solution.
