AAT3134

Features: VIN Range: 2.7 - 5.5 Volts< 1.0of Shutdow1 MHz Switching FrequencyFully Independent Display LightingDual Mode 1x and 1.5x Charge Pump forMaximum EfficiencyDrives Low-VF & High-VFType LED'sUp to Six 20mAOutputsMulti Position Brightness Scale with Digital ControlLow Noise Constant F...

product image

AAT3134 Picture
See larger image
SeekIC No. : 004261120 Detail

AAT3134: Features: VIN Range: 2.7 - 5.5 Volts< 1.0of Shutdow1 MHz Switching FrequencyFully Independent Display LightingDual Mode 1x and 1.5x Charge Pump forMaximum EfficiencyDrives Low-VF & High-VFTyp...

AAT3134 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AAT3134
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

VIN Range: 2.7 - 5.5 Volts
< 1.0of Shutdow
1 MHz Switching Frequency
Fully Independent Display Lighting
Dual Mode 1x and 1.5x Charge Pump for
Maximum Efficiency
Drives Low-VF & High-VFType LED's
Up to Six 20mAOutputs
Multi Position Brightness Scale with Digital Control
Low Noise Constant Frequency Operation
Small Application Circuit
Regulated Output Current
Automatic Soft-Start
No Inductors
16-pin QFN package
-40 to +85°C Temperature rang


Application

White LED Backlighting
White Photo-Flash for DSC's
Color (RGB) Lighting
Programmable Current Source


Pinout

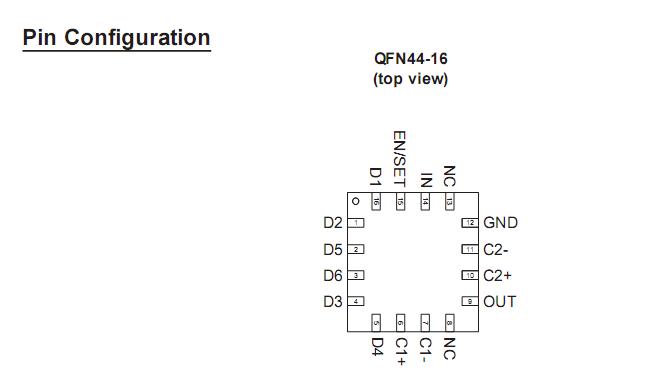

Connection Diagram


Specifications

Symbol Description
 Value Units
VIN, POK
 Input Voltage, POK -0.3 to 6.0 V
IOUT
 DC Output Current -0.3 to 6.0 V
FB,VEN/SET
 FB or EN/SETto GND Voltage -0.3 to 6.0 V
VEN/SET(MAX)
 Maximum EN/SETto Input Voltage 0.3 V

IOUT2
 Maximum DC Output Current 150 mA
TJ Operating Junction Temperature Range -40 to 150 °C



Description

The AAT3134 is a low noise, constant frequency charge pump DC/DC converter that uses a dual mode Load Switch (1X) and fractional (1.5X) con- version to maximize efficiency for White LED appli-cations. The device can be used to produce current evels up to 20mAin each of its six outputs to drive LED's from a 2.7V to 5.5V input. Outputs may be operated individually or paralleled for driving high-er-current LED's. Low external parts counts (two 1F flying capacitors and two small 1F capacito at VIN , and OUT) make the AAT3134 ideally suited for small battery-powered applications.
