AAT3125

Features: • Regulated Fractional Charge Pump• 100 mA Output Current• Reverse Load Protection• Power Good Flag• SRP detection Flag• SRP Ready Flag• Output Short Circuit and Thermal Protection• Under Voltage Protection• Less than 1µA consum...

product image

AAT3125 Picture
See larger image
SeekIC No. : 004261116 Detail

AAT3125: Features: • Regulated Fractional Charge Pump• 100 mA Output Current• Reverse Load Protection• Power Good Flag• SRP detection Flag• SRP Ready Flag• Output Sh...

AAT3125 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AAT3125
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Regulated Fractional Charge Pump
• 100 mA Output Current
• Reverse Load Protection
• Power Good Flag
• SRP detection Flag
• SRP Ready Flag
• Output Short Circuit and Thermal Protection
• Under Voltage Protection
• Less than 1µA consumed while disabled
• Designed to allow operation with output capacitance as low as 3.3µF.
• 16-pin 4x4mm QFN package






Application

• Cell Phones
• Hand Held Computers
• PDAs

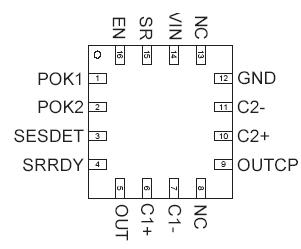

Pinout

Connection Diagram




Specifications

Symbol Description Value Units
VIN, VOUT Any Pin to GND -0.3 to 6 V
tSC OUT short circuit duration indefinite s
IOUT(2) Output Current 150 mA
TJ Operation temp. range -40 to 85 °C
TS Storage temp. range -65 to 150 °C
VESD ESD Rating3 - HBM 2000 V





Description

The AAT3125 USB On-the-Go (OTG) Charge Pump is a member of AnalogicTech™'s Total Power Management™ IC product family. The device integrates a high efficiency 1.5x fractional 100mA Regulated Charge Pump for supplying VBUS with the additional functions required for OTG-devices (formerly known as Dual Role Devices). Four voltage detectors monitor VBUS and a current source, dedicated for VBUS pulsing, are provided for compliance with Session Request Protocol (SRP) as defined by the USB OTG Supplement.

The charge pump section uses a high efficiency fractional topology, with a high frequency 750kHz switching speed which enables the use of small capacitors less than 3.3µF. The AAT3125 features extremely low quiescent current to extend battery run time. Additionally, the device integrates protection features such as undervoltage lockout, output short circuit and thermal protection.

The AAT3125 is available in a surface mount QFN- 16 package, and is rated from -40°C to 85°C.
