AAT3112

Features: Input Voltage Range:-AAT3112-5.0: 2.7V to 5.0V-AAT3112-4.5: 2.7V to 4.5VUp to 500mAPeak Output Current200mAContinuous Output CurrentI Q<1Ain ShutdowRegulated 4.5V or 5.0V Output26Aof Quiescent CurrenSmall Application CircuitAutomatic Soft StartNo InductorsShort-Circuit/Over-Temperatur...

product image

AAT3112 Picture
See larger image
SeekIC No. : 004261109 Detail

AAT3112: Features: Input Voltage Range:-AAT3112-5.0: 2.7V to 5.0V-AAT3112-4.5: 2.7V to 4.5VUp to 500mAPeak Output Current200mAContinuous Output CurrentI Q<1Ain ShutdowRegulated 4.5V or 5.0V Output26Aof Qu...

AAT3112 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AAT3112
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Input Voltage Range:
-AAT3112-5.0: 2.7V to 5.0V
-AAT3112-4.5: 2.7V to 4.5V
Up to 500mAPeak Output Current
200mAContinuous Output Current
I Q<1Ain Shutdow
Regulated 4.5V or 5.0V Output
26Aof Quiescent Curren
Small Application Circuit
Automatic Soft Start
No Inductors
Short-Circuit/Over-Temperature Protection
16-Pin 3x3mm QFN Package
Temperature Range: -40°C to +85°C




Application

General-Purpose High-Current Boost Supply
White LED Backlighting
White LED Photo Flash




Pinout

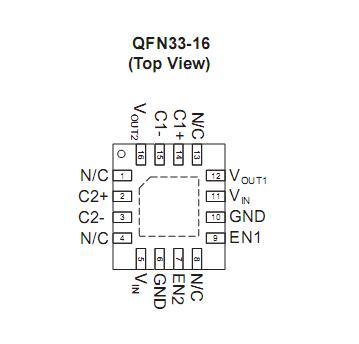

Connection Diagram




Specifications

Symbol Description
 Value Units
VIN,
 Input Voltage -0.3 to 6.0 V
IOUT Charge Pump Output -0.3 to 6.0 V
VEN
 EN to GND Voltage -0.3 to 6.0 V
TJ
 Operating Junction Temperature Range -40 to 150 °C
TLEA

 Maximum Soldering Temperature (at leads, 10 sec) 300 °C


  • VIN Range: 2.7V to 5.5V
  • IQ < 1A in shutdown
  • Up to 500mA of output current
  • Regulated 4.5V output
  • 26A of quiescent current
  • Small application circuit
  • Automatic soft-start
  • No inductors
  • Short circuit/over-temperature protection
  • 16-pin 3x3 QFN package





Description

The AAT3112 is a member of AnalogicTech's Total Power Management IC™ (TPMIC™ family. It is a dual voltage doubling charge pump that provides a regulated output voltage. It operates with an input voltage range of 2.7 to 5.0 volts. The device can deliver a constant 200mAoutput load current and up to 500mAof pulsed current. The 500mApeak cur- rent capability of the AAT3112 makes it ideal for white LED flash applications. Alow external partscount (two 1 flying capacitors and two smal capacitors at VIN and VOUT ) makes the AAT3112 ide-ally suited for small battery-powered applications.
