Features:

Up to 4 LEDs at 2.8V Supply
High Efficiency (85%)
Output Over Voltage Protection
HV Internal Switch
1MHz PWM Switching Frequency
Uses Tiny 1 mm Height Inductor .
2.6V to 6V Input Range .
1A Shutdown Current
SOT-26 & VQFN-8 Package Available


Application

Palmtops
MP3 Player
Digital Still Cameras
Portable Media Player
Cell Phones and Smart Phones
Electronic Information Organizers


Pinout

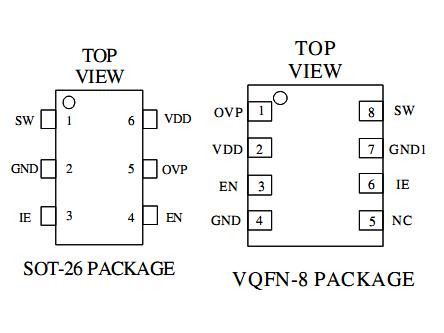

Connection Diagram


Specifications

CHARACTERISTICS SYMBOL
 Value Units

Supply Voltage

V DD -0.3 to 7 V
SW, OVP to GND
  -0.3 to 21 V
Other I/O Pin Voltage
  -0.3 to 6 V
Junction Temperature
  125 °C
Storage Temperature Range
Tstorage -40 to125 °C
Operating Temperature Range T C -40 to85 °C
Lead Temperature TL 260 °C



Description

The AAT1500 is a step-up converter that provides a  solution to drive 1 to 4 white LEDs with a constant  current from a Lithium Ion cell, and its switching frequency is fixed at 1 MHz.

 The AAT1500 offers a low 0.25V reference, which  minimizes power loss in the current setting resistor and improves efficiency. Protection feature includes output  over  voltage  protection.  The  AAT1500consists  of a 0.1A  shutdown  current,  and  HV internal switch. Input supple range allows operation from 2.6V to 6V.

The AAT1500 is available in 6-pin SOT-26 and 8-pin VQFN-8 package.
