Product Details

Description



Features:

• Maximum Output: 18V @ 100mA
• True Load Disconnect
• Dynamic Voltage Control Options
• Hysteretic Control
- No External Compensation Components
- Excellent Load Transient Response
- High Efficiency at Light Load
• Up to 2MHz Switching Frequency
• Ultra-Small Inductor and Capacitors
• Integrated Low RDS(ON) MOSFET Switches
• Up to 85% Efficiency
• <1A Shutdown Current
• Integrated Soft Start
• Two Turn-On Time Options
- AAT1230: TSS = 0.35ms
- AAT1230-1: TSS = 3.5ms
• Cycle-by-Cycle Current Limit
• Short-Circuit, Over-Temperature Protection
• Available in TSOPJW-12 or TDFN34-16 Package
• -40°C to +85°C Temperature Range


Application

• CCD Bias Circuit
• Digital Still Cameras
• LCD Bias Circuit
• Mobile Handsets
• MP3 Players
• OLED Displays
• PDAs and Notebook PC

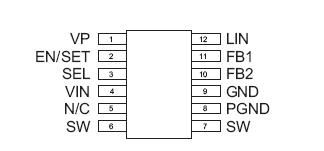

Pinout

Connection Diagram


Specifications

Symbol Description Value Units
VIN Input Voltage -0.3 to 6.0 V
SW Switching Node 20 V
LIN, EN/SET,
SEL, FB1, FB2		 Maximum Rating VIN + 0.3 V
TJ Operating Temperature Range -40 to 150 °C
TS Storage Temperature Range -65 to 150 °C
TLEAD Maximum Soldering Temperature (at leads, 10 sec) 300 °C



Description

The AAT1230/1230-1 is a high frequency, high efficiency boost converter capable of 18V maximum output voltage. The internal power switch can delive 100mA load current. It is the ideal power solution to power OLED, LCD, and CCD applications operating from a single cell lithium-ion battery.

Hysteretic control provides up to 2MHz switching frequency and fast response to load transients with small, low-cost external components. The fully integrated control IC simplifies the design while reducing the total PCB footprint. The AAT1230/1230-1 offers a true load disconnect feature which isolates the load from the power source when EN/SET is pulled low. This eliminates leakage current and maintains zero voltage at the output while disabled.

The output voltage can be dynamically set by activating one of two reference levels (FB1 or FB2) through the SEL logic pin. Optionally, AnalogicTech's Simple Serial Control™ (S2Cwire™) single wire interface provides dynamic programmability across a wide output voltage range through the EN/SET pin.

The AAT1230/1230-1 are available in a Pb-free, thermally-enhanced 16-pin 3x4mm TDFN low-profile package or a Pb-free 12-pin TSOPJW package.
