AAT1154

Features: VINRange: 2.7-5.5VoltsFixed or adjustable VOUT: 1.0V - 4.2V3Aoutput currentUp to 95% efficiencyIntegrated low on resistance power switchInternally compensated current mode control1MHz switching frequencyConstant PWM modeLow output ripple with light loadInternal softstartCurrent limit pro...

product image

AAT1154 Picture
See larger image
SeekIC No. : 004261022 Detail

AAT1154: Features: VINRange: 2.7-5.5VoltsFixed or adjustable VOUT: 1.0V - 4.2V3Aoutput currentUp to 95% efficiencyIntegrated low on resistance power switchInternally compensated current mode control1MHz swit...

AAT1154 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AAT1154
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

VINRange: 2.7-5.5Volts
Fixed or adjustable VOUT: 1.0V - 4.2V
3Aoutput current
Up to 95% efficiency
Integrated low on resistance power switch
Internally compensated current mode control
1MHz switching frequency
Constant PWM mode
Low output ripple with light load
Internal softstart
Current limit protection
Over-Temperature protection
SOP-8 package
-40 to 85°C Temperature Rang




Application

Computer Peripherals
Set Top Boxes
Network Cards
Cable/DSLModems
High efficiency conversion from 5V or 3.3V
supply

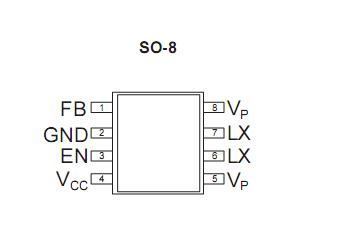

Pinout

Connection Diagram




Specifications

  • VIN range: 2.7V - 5.5V
  • Fixed or adjustable VOUT: 1.0V - 4.2V
  • 3A output current
  • Up to 95% efficiency
  • Integrated low on-resistance power switch
  • Internally compensated current mode control
  • 1MHz switching frequency
  • Constant PWM mode
  • Low output ripple with light load
  • Internal soft start
  • Current limit protection
  • Over-temperature protection
  • SOP-8 package
  • -40 to +85C temperature range


Symbol Description
 Value Units

VCC , VP

 VCC , VP to GND 6 V
VLX

 LX to GND -0.3 to VP +0.3 V
VFB
 FB to GND -0.3 to V CC+0.3 V
VEN
POK, EN to GND -0.3 to V CC+0.3 V
TJ
 Operating Junction Temperature Range -40 to 150 °C
VESD ESDRating1 - HBM 3000 V





Description

span id="lblDescription">

The AAT1154 SwitchReg is a member of AnalogicTech Total Power Management IC product family. The step-down switching converter is ideal for applications where high efficiency, small size, and low ripple are critical. Able to deliver 3A with an internal power MOSFET, the current-mode controlled IC provides high efficiency. Fully internally compensated, the AAT1154 simplifies system design and lowers external part count. The AAT1154 is available in an SOP-8 package, rated over the -40 to +85C temperature range.



The AAT1154 SwitchReg™is a member of AnalogicTech?'s Total Power Management™ IC product family. The Step-down switching converter is ideal for applications where high efficiency, small size, and low ripple are critical. Able to deliver 3A with an internal power MOSFET, the current-mode controlled IC provides high efficiency. Fully internally compensated, the AAT1154 simplifies system design and lowers external part count.

The AAT1154 is available in an SOP-8 package,rated over -40 to 85°C.
