AAT1150

Features: VIN Range: 2.7V to 5.5VUp to 95% Efficiency110m RDS(ON)MOSFETSwitch<1.0Aof Shutdown Curren1MHz Switching FrequencyFixed or Adjustable V OUT: 1.0V to 4.2VHigh Initial Accuracy: ±11.0APeak CurrentIntegrated Power SwitchesSynchronous RectificationInternally Compensated Current Mode Contr...

product image

AAT1150 Picture
See larger image
SeekIC No. : 004261018 Detail

AAT1150: Features: VIN Range: 2.7V to 5.5VUp to 95% Efficiency110m RDS(ON)MOSFETSwitch<1.0Aof Shutdown Curren1MHz Switching FrequencyFixed or Adjustable V OUT: 1.0V to 4.2VHigh Initial Accuracy: ±11.0APea...

AAT1150 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AAT1150
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

VIN Range: 2.7V to 5.5V
Up to 95% Efficiency
110m RDS(ON)MOSFETSwitch
<1.0Aof Shutdown Curren
1MHz Switching Frequency
Fixed or Adjustable V OUT: 1.0V to 4.2V
High Initial Accuracy: ±1
1.0APeak Current
Integrated Power Switches
Synchronous Rectification
Internally Compensated Current Mode Control
Constant PWM Mode for Low Output Ripple
Internal Soft Start
Current Limit Protection
Over-Temperature Protection
MSOP-8 package
-40°C to +85°C Temperature Ran


Application

Cable/DSLModems
Computer Peripherals
High Efficiency Conversion From 5V or 3.3V
Supply
Network Cards
Set-Top Boxes


Pinout

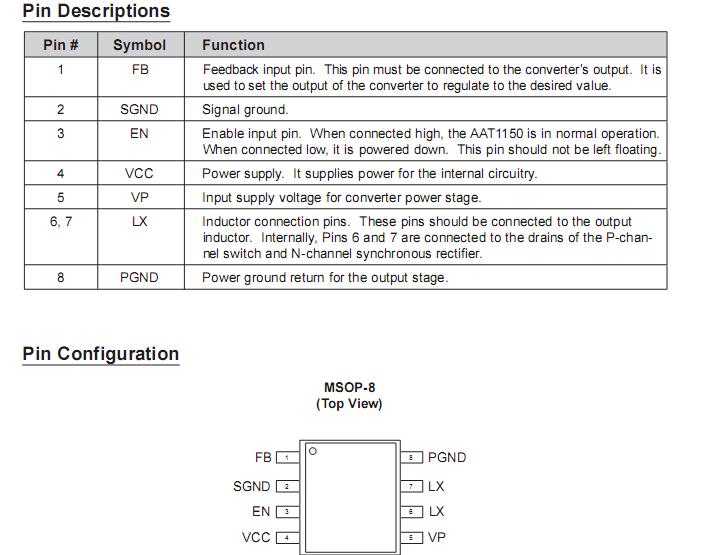

Connection Diagram


Specifications

Symbol Description
 Value Units

VCC , VP

 VCC , VP to GND 6 V
VLX

 LX to GND -0.3 to VP +0.3 V
VFB
 FB to GND -0.3 to V CC+0.3 V
VEN
EN to GND -0.3 to 6 V
TJ
 Operating Junction Temperature Range -40 to 150 °C
V
ESD		 ESDRating2 - HBM 3000 V



Description

The AAT1150 SwitchReg™ is a member of AnalogicTech's Total Power Management IC™ (TPMIC™) product family. The step-down switch- ing converter is ideal for applications where high efficiency, small size, and low ripple are critical. Able to deliver 1Awith internal power MOSFETs, the current-mode controlled IC provides high effi- ciency using synchronous rectification.  Fully inter- nally compensated, the AAT1150 simplifies system design and lowers external parts count. The AAT1150 is available in an MSOP-8 package and is rated over the -40°C to +85°C temperatu range.
