Product Details

Description

Features:

· 3 levels of output voltage, 15V, 0V and -8.5V
· 3.3V / 5􀁺 3 levels of output voltage, 15V, 0V and -8.5V
· 3.3V / 5V input voltageV input voltage

Pinout

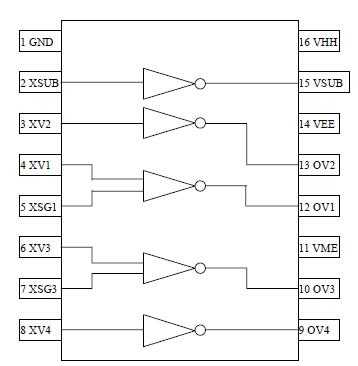

Connection Diagram

Specifications

Parameter	Symbol	MIN	TYP	MAX	UNIT
	VEE	-10		0	V
Supply Voltage	VHH	-0.3		VEE+30	V
	VME	VEE-0.3		3	V
Input Voltage	VI	-0.3		VEE+30	V
	OV1, OV3, VSUB	VEE-0.3		VEE+30	V
Output Voltage	OV2, OV4	VEE-0.3		VEE+30	V
Operating Ambient Temperature	Ta	-25		85
Storage Temperature	Ts	-45		125

NOTE: Stress above those listed under "Absolute Maximum Rating" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for the extended periods of time
may affect device reliability.

Description

AA87222AP is a vertical driver with 3 levels of output voltage processed in a standard CMOS.
