Product Details

Description



Features:

Attenuation in 2 dB Steps to 30 dB with High Accuracy
Low Cost SOIC-16 Plastic Package
Low DC Power Consumption

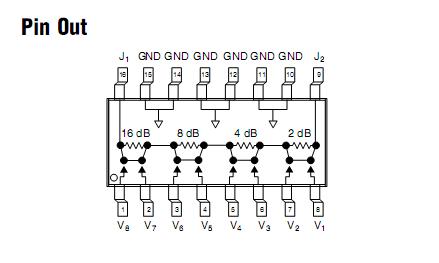

Pinout

Connection Diagram


Specifications

RF Input Power..............2 W > 500 MHz 0/-8 V0.5W @ 50 MHz 0/-8 V
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C


Description

The AD220-25 is an IC FET digital attenuator consisting of four monolithic attenuators with LSB of 2 dB and a totalattenuation of 30 dB with all attenuators connected. The AD220-25 is particularly well suited where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include cellular, radio, wireless data, wireless local loop and other gain level control circuits.
