Series: -
Impedance: 50 Ohm
Manufacturer: Skyworks Solutions Inc
Package / Case: 32-VFQFN Exposed Pad
Attenuation Value: 0.5dB ~ 31.5dB
Power (Watts): 2W
Tolerance: ±0.2dB
Frequency Range: 0 ~ 1GHz
Features: Attenuation 0.5 dB Steps to 31.5 dB With High Accuracy
Single Positive Control (+5 V) for Each Bit
Low DC Power Consumption

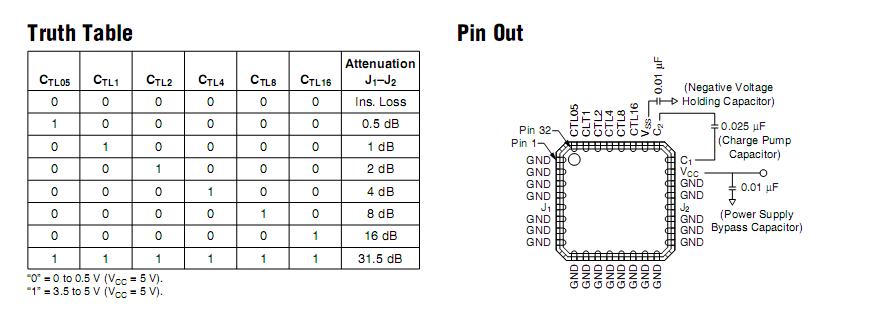

CMOS Integrated Silicon DriverDesigned for Use at IF FrequenciesPinout
SpecificationsRF Input Power.............2 W > 500 MHz 0/6V0.75 W @ 50 MHz 0/6 V
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C JC ........................................................................................85°C/W
Description The AA113-310 is a 6 bit, single positive control GaAs IC FET digital attenuator with driver.It is particularly suited at IF frequencies where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include base station, wireless data, broadband and wireless local loop gain control circuits.
AA113-310 Data Sheet
