Product Details

Description

Features:

* Triple channels.
* Can be directly coupled to the previous circuit.
* Each output can drive two loads (75*2).
* Output short circuit protection.

Pinout

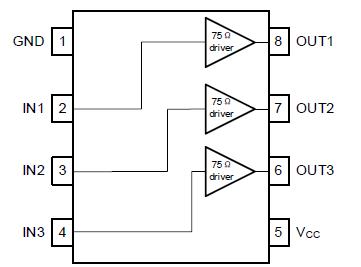

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Power Supply Voltage	V_CC	8.0	V
Power Dissipation	P_D	550	mW
Derating Rate at Ta=25°C		5.5	°C/mW
Operating Temperature	T_OPR	-25 ~ +75	°C
Storage Temperature	T_STG	-55 ~ +125	°C

Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.Absolute maximum ratings are stress ratings only and functional device operation is not implied.

Description

The UTC A7623 is a 75 driver-IC. It is a follower for video signals. It can be directly coupled to the previous stage because there is no internal bias at the input pin. When output is short to earth the IC enters power-save mode.
