A5367CA

Series: -
Function: -
Sensor Type: -
Sensing Temperature: -
Accuracy: -
Topology: -
Output Alarm: -
Output Fan: -
Voltage - Supply: -
Operating Temperature: -
Mounting Type: Through Hole
Packaging: Tube
Output Type: Voltage
Type: Smoke Detector
Input Type: Ionization
Interface: -
Package / Case: 16-DIP (0.300", 7.62mm)
Manufacturer: Allegro Microsystems Inc
Current - Supply: 12µA
Supplier Device Package: 16-DIP


Features:

·Interconnect Up to 125 Detectors
·Piezoelectric Horn Driver
·Guard Outputs for Detector Input
·Pulse Testing for Low Battery
·Power-ON Reset
·Internal Reverse Battery Protection
·Internal Timer & Control for Reduced Sensitivity
·Built-In Hysteresis Reduces False Triggering
·Temporal Horn Pattern

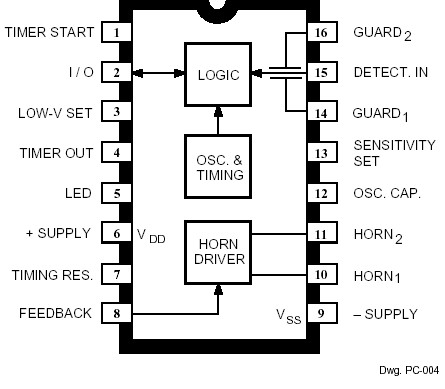

Pinout




Specifications

Supply Voltage Range,
VDD ................................ -0.5 V to +15 V
Reverse Battery (10.5 V) ................. 20 s
Input Voltage Range,
VIN ........................ -0.3 V to VDD + 0.3 V
Input Current, IIN ......................... 10 mA
Operating Temperature Range,
TA ................................... 0°C to +50°C
Storage Temperature Range,
TS ............................... -55°C to +125°C
CAUTION: CMOS devices have input static protection but are susceptible to damage when exposed to extremely high static electrical charges.


Description

The A5367CA is a low-current, CMOS circuit providing all of the required features for an ionization-type smoke detector. A networking capability allows as many as 125 units to be interconnected so that if any unit senses smoke, all units will sound an alarm. In addition, special features are incorporated to facilitate alignment and test of the finished smoke detector. This device is designed to comply with Underwriters Laboratories Specification UL217.

The internal oscillator and timing circuitry keeps standby power to a minimum by powering down the device for 1.66 seconds and sensing smoke for only 10 ms. Every 24 on/off cycles, a check is made for low battery condition. By substituting other types of sensors, or a switch for the ionization detector, this very-low power device can be used in numerous other battery-operated safety/security applications. The A5367CA is supplied in a low-cost, 16-pin dual in-line plastic package.

A5367CA is rated for continuous operation over the temperature range of 0°C to +50°C.

Parameters:

Technical/Catalog Information	A5367CA
Vendor	Allegro Microsystems Inc
Category	Integrated Circuits (ICs)
Package / Case	16-DIP
Packaging	Tube
Type	Smoke Detector
Interface	CMOS
Supply Voltage	6 V ~ 12 V
Current - Supply	12A
Input Type	-
Output Type	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	A5367CA A5367CA
