A5338

Features: ·Interconnect up to 125 detectors·Piezoelectric horn driver·Guard outputs for detector input·Pulse testing for low battery·Power-on reset·Internal reverse battery protection·Internal timer and control for reduced sensitivity·Built-in hysteresis reduces false triggeringPinoutSpecification...

product image

A5338 Picture
See larger image
SeekIC No. : 004260386 Detail

A5338: Features: ·Interconnect up to 125 detectors·Piezoelectric horn driver·Guard outputs for detector input·Pulse testing for low battery·Power-on reset·Internal reverse battery protection·Internal timer...

A5338 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
A5338
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Interconnect up to 125 detectors
·Piezoelectric horn driver
·Guard outputs for detector input
·Pulse testing for low battery
·Power-on reset
·Internal reverse battery protection
·Internal timer and control for reduced sensitivity
·Built-in hysteresis reduces false triggering


Pinout

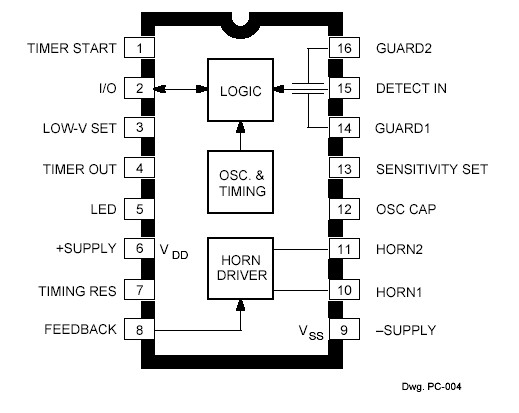

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Supply Voltage Range2
Reverse Battery
Logic Input Voltage Range2
Logic Input Current
Operating Temperature Range (C)
Junction Temperature
Storage Temperature Range
VDD

VI
II
TA
TJ
TS
10.5 V
0.5

0.3

0

55






15
20
VDD+ 0.3
10
50
150
125
V
s
V
mA
°C
°C
°C
1CMOS devices have input static protection, but are susceptible to damage when exposed to extremely high static electrical charges.
2Voltages are references to VSS


Description

The A5338CA is a low-current, CMOS circuit providing all of the required features for an ionizationtype smoke detector. A networking capability allows as many as 125 units to be interconnected so that if any unit senses smoke, all units will sound an alarm. In addition, special features are incorporated to facilitate alignment and test of the finished smoke detector. This device is designed to comply with Underwriters Laboratories Specification UL217.

The internal oscillator and timing circuitry keeps standby power to a minimum by powering down the device for 1.66 seconds and sensing smoke for only 10 ms. Every 24 on/off cycles, a check is made for low battery condition. By substituting other types of sensors, or a switch for the ionization detector, this very-low power device can be used in numerous other battery-operated safety/security applications.

The A5338CA is supplied in a low-cost, 16-pin dual in-line plastic package. It is rated for continuous operation over the temperature range of 0°C to +50°C.
