A3240

The A3240-- Hall-effect switch is an extremely temperature-stable and stress-resistant sensor especially suited for operation over extended tem per a ture ranges to +150°C. Superior high-temperature per for mance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, tem per ature de pen den cies, and thermal stress.

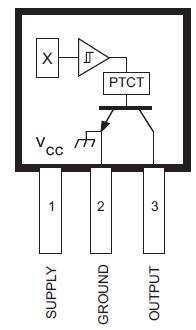

The device A3240 includes on a single silicon chip a voltage regulator, Hallvoltage generator, small-signal amplifi er, chopper sta bi li za tion, Schmitt trigger, and a short-circuit protected open-collector output to sink up to 25 mA. A south pole of suffi cient strength will turn the output on. An on-board regulator permits operation with supply voltages of 4.2 to 24 volts.

Three package styles provide a magnetically op ti mized pack age for most ap pli ca tions. Package type LH is a modifi ed SOT23W surfacemount package, LT is a miniature SOT89/TO-243AA transistor package for surface-mount applications; while UA is a three-lead ultra-mini-SIP for through-hole mounting. The LH and UA packages are also available in a lead (Pb) free version (suffix, T) , with a 100% matte tin plated leadframe.
