Features: ·Internal Protection For Automotive (ISO/DIN)Transients ·Operation From Unregulated Supply ·Reverse Battery Protection ·Undervoltage Lockout ·Supply Noise-Suppression Circuitry ·Output Short-Circuit Protection ·Output Zener Clamp ·Thermal Protection ·Symmetrical Latching Switch Points ·O...
A3195E: Features: ·Internal Protection For Automotive (ISO/DIN)Transients ·Operation From Unregulated Supply ·Reverse Battery Protection ·Undervoltage Lockout ·Supply Noise-Suppression Circuitry ·Output Sho...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Supply Voltage, VCC (100 ms).....................15 V*
(continuous).................................................. 26 V
Reverse Battery Voltage,VRCC (100 ms).... -100 V
(continuous)................................................ -30 V
Magnetic Flux Density, B........................ Unlimited
Reverse Output Voltage, VOUT................... -0.5 V
Continuous Output Current,IOUT...............-25 mA
Package Power Dissipation,PD............ See Graph
Junction Temperature, TJ............................. 170
Operating Temperature Range, TA
Suffix "E-"....................................... -40 to +85
Suffix "L-" .................................... -40 to +150
Storage Temperature, TS............................. 170
*Fault condition, internal overvoltage shutdown above 28 V.
Internal current limiting is intended to protect the device from output short circuits.
These Hall-effect latches A3195E are capable of sensing magnetic fields while using an unprotected power supply. The A3195- can provid position and speed information by providing a digital output for magnetic fields that exceed their predefined switch points. These devices operate down to zero speed and have switch points that are designed to be extremely stable over a wide operating temperature and voltage range. The latching characteristics make them ideal for use in pulse counting applications when used with a multi-pole ring magnet.A 25 mA high-side driver combined with an active pull-down is especially useful for driving capacitive loads. Output short-circuit protectio allows for an increased wiring harness fault tolerance. The temperature compensated switch points, the wide operating voltage range, an the integrated protection make these devices ideal for use in automotive applications such as transmission speed sensors and integrated wheel bearing speed sensors.

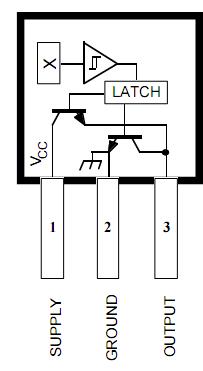

Each monolithic device A3195E contains an integrated Hall-effect transducer, a temperature-compensated comparator, a voltage regulator,and a buffered high-side driver with an active pull-down. Supply protection is made possible by the integration of overvoltage shutdow circuitry that monitors supply fault conditions. Output protection circuitry includes source and sink current current limiting for short circuits to supply or ground.
The A3195E- is rated for operation over a temperature range of -40 to +85; the A3195L(R)C is rated for operation over an extende temperature range of -40 to +150. They are supplied in a three-lead SIP (suffix (-U) or a surface-mount SOT89 (suffix -LT)
