Features: TTL, DTL, PMOS, or CMOS Compatible InputsOutput Current to 500 mAOutput Voltage to 95 VTransient-Protected OutputsDual In-Line Package or Wide-Body Small-Outline PackagePinoutSpecificationsOutput Voltage, VCE(x2803x and x2804x) ............................. 50 V(x2823x and x2824x) .........
A2803: Features: TTL, DTL, PMOS, or CMOS Compatible InputsOutput Current to 500 mAOutput Voltage to 95 VTransient-Protected OutputsDual In-Line Package or Wide-Body Small-Outline PackagePinoutSpecification...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
TTL, DTL, PMOS, or CMOS Compatible Inputs
Output Current to 500 mA
Output Voltage to 95 V
Transient-Protected Outputs
Dual In-Line Package or Wide-Body Small-Outline Package

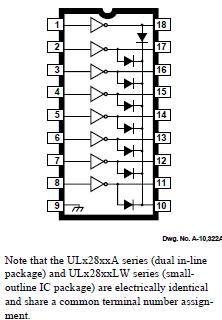

Featuring continuous load current ratings to 500 mA for each of the drivers A2803, the Series ULN28xxA/LW and ULQ28xxA/LW highvoltage, high-current Darlington arrays are ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads. Typical power loads totaling over 260 W (350 mA x 8, 95 V) can be controlled at an appropriate duty cycle depending on ambient temperature and number of drivers turned on simultaneously. Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters. All devices feature open-collector outputs with integral clamp diodes.
The ULx2803A, ULx2803LW, ULx2823A, and ULN2823LW have series input resistors selected for operation directly with 5 V TTL or CMOS. These devices will handle numerous interface needs - particularly those beyond the capabilities of standard logic buffers.
