A1362

• 1 mm case thickness provides greater coupling for current sensing applications
• Customer programmable offset and sensitivity
• Factory programmed 0% / °C sensitivity temperature coefficient
• Programmability at end-of-line
• Selectable unipolar or bipolar quiescent voltage levels
• Selectable sensitivity ranges between 0.7 and 1.4 mV/G (A1360), 1.4 to 4.5 mV/G (A1361) and 4.5 to 16 mV/G (A1362)
• Device bandwidth selectable under 50 kHz, via capacitor on FILTER pin
• Ratiometric sensitivity, quiescent voltage output, and clamps for interfacing with application DAC
• Temperature-stable quiescent voltage output and sensitivity
• Precise recoverability after temperature cycling
• Output voltage clamps provide short circuit diagnostic capabilities
• Wide ambient temperature range: ?0°C to 150°C
• Resistant to mechanical stress

Description

New applications for linear output Hall effect sensors, such as current measurement, require both high accuracy and increased sensor bandwidth. The Allegro® A1360, A1361, and A1362 programmable linear Hall effect sensors are designed specifically to achieve both goals. Available in a through-hole SIP (single in-line package), the A1360, A1361, and A1362 Hall effect sensors are sensitive and temperature-stable. The accuracy of these devices is enhanced via programmability on the device VOUT pin. A capacitor to ground on the FILTER pin on the A136x can be used to tune the device bandwidth in a range less than 50 kHz.

These ratiometric Hall effect sensors provide a voltage output that is proportional to the applied magnetic field. The quiescent output voltage is user-adjustable around either 50% (bidirectional configuration) or 10% (unidirectional configuration) of the supply voltage, VCC. The A1360, A1361, and A1362 sensitivity is adjustable within three guaranteed ranges: 0.7 to 1.4 mV/G (A1360), 1.4 to 4.5 mV/G (A1361), and 4.5 to 16 mV/G (A1362).

Each BiCMOS monolithic circuit of A1360, A1361, and A1362 integrates a Hall element, temperature-compensation circuitry to reduce the intrinsic sensitivity drift of the Hall element, a small-signal high-gain amplifier, a clamped low-impedance output stage, and a proprietary dynamic offset cancellation technique.

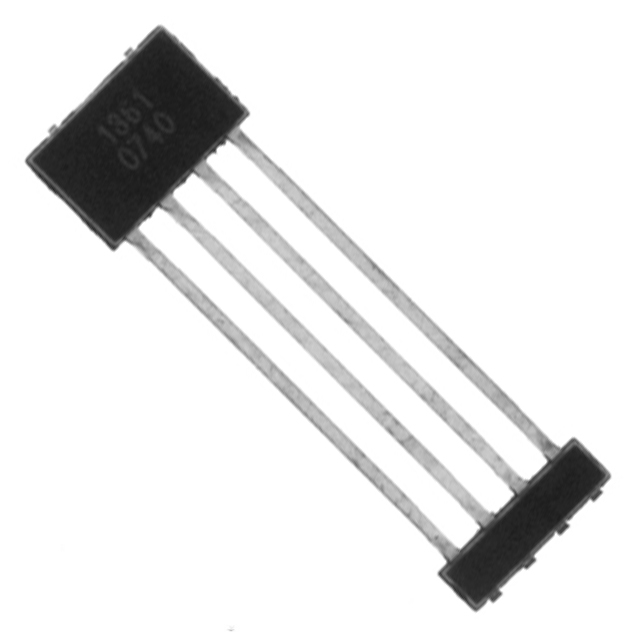

The features of these linear Hall A1360, A1361, and A1362 effect sensors make them ideal for meeting high accuracy requirements in automotive and industrial applications. Device specifications are guaranteed over an extended ambient temperature range: 0°C to 150°C. The A136x sensors are provided in an extremely thin case (1 mm thick), 4-pin SIP (single in-line package, suffix KT) that is lead (Pb) free, with 100% matte tin leadframe plating.
