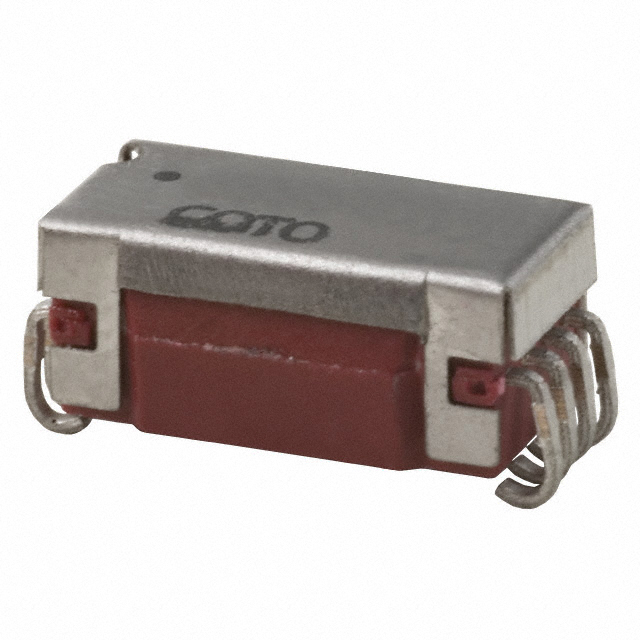

9852-03-20: RELAY RF SPDT 100MA 3.3V

9852-03-20 Data Sheet

Get Latest Price

Part Number:: 9852-03-20
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

9852 evaluate
Features: Available in Axial, Gull wing and J lead configurations Tape and Reel packaging avail...
9852.2100 evaluate
US $.32 - .41 / Piece

Mounting Hardware TRANSIPILLAR TPI/ 12.5/22.0/M5/S-
9852.2200 evaluate
US $.35 - .45 / Piece

Mounting Hardware TRANSIPILLAR TPI/ 12.5/22.0/M5/S-I

Product Details

Quick Details

Series:	9800	Processor Series :	HCS12X
Manufacturer:	Coto Technology	Relay Type:	RF
Coil Type:	Non Latching	Coil Current:	47.1mA
Coil Voltage:	3.3VDC	Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	100mA	Switching Voltage:	30VAC, 30VDC - Max
Turn On Voltage (Max):	2.5 VDC	Turn Off Voltage (Min):	0.4 VDC
Features:	Magnetic Shield	Mounting Type:	Surface Mount
Termination Style:	J Lead

Description

Coil Type: Non Latching
Mounting Type: Surface Mount
Termination Style: J Lead
Contact Form: SPDT (1 Form C)
Packaging: Tube
Relay Type: RF
Manufacturer: Coto Technology
Turn Off Voltage (Min): 0.4 VDC
Features: Magnetic Shield
Switching Voltage: 30VAC, 30VDC - Max
Series: 9800
Coil Current: 47.1mA
Coil Voltage: 3.3VDC
Turn On Voltage (Max): 2.5 VDC
Contact Rating (Current): 100mA

Parameters:

Technical/Catalog Information	9852-03-20
Vendor	Coto Technology
Category	Relays
Relay Type	RF
Mounting Type	Surface Mount
Termination Style	J Lead
Circuit	SPDT (1 Form C)
Contact Rating @ Voltage	0.1A @ 30VAC/DC
Coil Voltage	3.3VDC
Control Off Voltage (Min)	0.4 VDC
Control On Voltage (Max)	2.5 VDC
Coil Current	47.1mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	9852 03 20 98520320 306 1164 5 ND 30611645ND 306-1164-5
