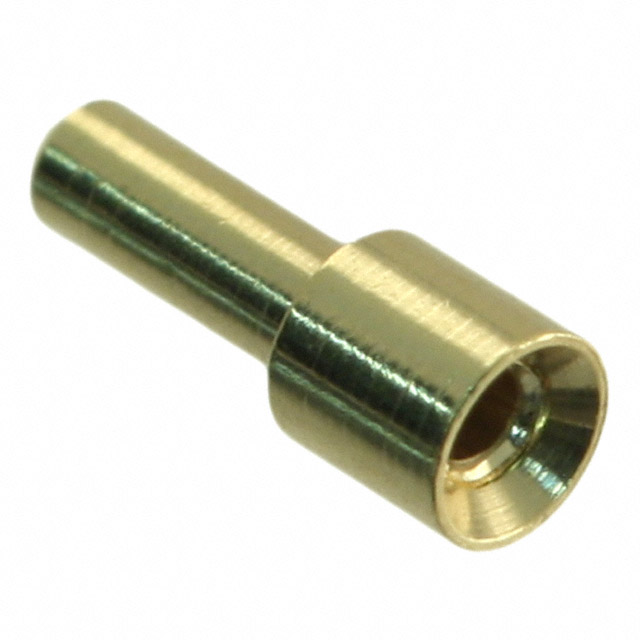

Circuit Board Hardware - PCB 10u AU OVER NI 21 CON
9548-0-15-15-21-27-10-0: Circuit Board Hardware - PCB 10u AU OVER NI 21 CON
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $.1 - .12 / Piece
Circuit Board Hardware - PCB SOLDER MNT PIN RECPT
US $.36 - .36 / Piece
Circuit Board Hardware - PCB 200u SN/PB OVER NI 21 CON
Technical/Catalog Information | 9548-0-15-15-21-27-10-0 |
Vendor | Mill Max |
Category | Connectors |
Type | Socket, No Tail |
Mounting Type | Solder Mount |
Flange Diameter | 1.473 mm [Typ] |
Flange Thickness | 1.524 mm [Nom] |
Outside Diameter | 0.864 mm [Typ] |
Inner Diameter | 0.559 mm [Typ] |
Length Above Board | 1.524 mm [Typ] |
Length Below Board | 2.413 mm [Typ] |
Socket Depth | 3.505 mm [Typ] |
Through Hole Size | 0.910 mm [Min] |
Feature(s) | Closed Bottom |
Packaging | Bulk |
Contact Material | Beryllium Copper |
Contact Finish | Gold |
Operating Temperature | -55 °C [Min] |
Operating Temperature | 125 °C [Max] |
Other Names | 9548 0 15 15 21 27 10 0 9548015152127100 9548 015152127100 ND 9548015152127100ND 9548-015152127100 |
