9401

Number of Ports :
Number of Positions / Contacts :
Pitch :
Contact Plating :
Contact Material :
Gender :
Current Rating :
Mounting Style :
Termination Style :
Color :
Mounting Angle :
Product : Kits


Features:

• Choice of Linearity
- TC9401: 0.01%
- TC9400: 0.05%
- TC9402: 0.25%
• DC to 100kHz (F/V) or 1Hz to 100kHz (V/F)
• Low Power Dissipation: 27mW (Typ.)
• Single/Dual Supply Operation
- +8V to +15V or ±4V to ±7.5V
• Gain Temperature Stability: ±25 ppm/ (Typ.)
• Programmable Scale Factor
FREQUENCY-TO-VOLTAGE
• Operation: DC to 100kHz
• Choice of Linearity
- TC9401: 0.02%
- TC9400: 0.05%
- TC9402: 0.25%
• Programmable Scale Factor

Application

• P Data Acquisition
• 13-bit Analog-to-Digital Converters
• Analog Data Transmission and Recording
• Phase Locked Loops
• Frequency Meters/Tachometer
• Motor Control
• FM Demodulation

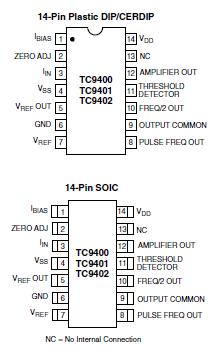

Pinout




Specifications

VDD VSS .........................................................+18V
IIN ......................................................................10mA
VOUTMAX VOUT Common...................................23V
VREF VSS .......................................................-1.5V
Storage Temperature Range..........-65°C to +150°C
Operating Temperature Range:
    C Device ......................................... 0°C to +70°C
    E Device...................................... -40°C to +85°C
Package Dissipation (TA 70°C):
    8-Pin CerDIP..............................................800mW
    8-Pin Plastic DIP ........................................730mW
    8-Pin SOIC.................................................470mW


Description

The TC9400/TC9401/TC9402 are low cost voltage-tofrequency (V/F) converters, utilizing low power CMOS technology. The converters accept a variable analog input signal and generate an output pulse train, whose frequency is linearly proportional to the input voltage.

The TC9400/TC9401/TC9402 can also be used as highly accurate frequency- to-voltage (F/V) converters, accepting virtually any input frequency waveform and providing a linearly proportional voltage output.

A complete V/F or F/V system of TC9400/TC9401/TC9402 only requires the addition of two capacitors, three resistors, and reference voltage.
