93C86A/B/C

`Low-power CMOS technology
`ORG pin to select word size for '86C' versin
`2048 x 8-bit organization 'A' devices (no ORG)
`1024 x 16-bit organization 'B' devices (no ORG)
`Program Enable pin to write-protect the entire array ('86C' version onl)
`Self-timed erase/write cycles (including auto-erase)
`Automatic ERAL before WRAL
`Power-on/off data protection circuitry
`Industry standard 3-wire serial I/O
`Device Status signal (Ready/Busy)
`Sequential read function
`1,000,000 E/W cycles
`Data retention > 200 years
`Temperature ranges supported:
-Industrial (I)-40 to +85
-Automotive (E)-40 to +125

Absolute Maximum Ratings  *
V_CC.................................................................................7.0V
All inputs and outputs w.r.t. V_SS .............-0.6V to V_CC+1.0V
Storage temperature....................................-65 to +150
Ambient temperature with power applied....-40 to +125
ESD protection on all pins.............................................. 4kV
* NOTICE: Stresses above those listed under'Absolute Maximum Ratings' may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for
extended periods may affect device reliability.

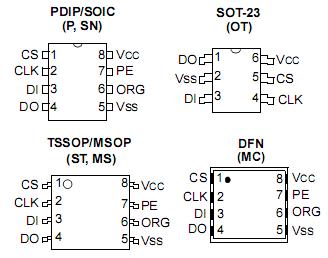

The Microchip Technology Inc. 93XX86A/B/C devices are 16K bit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93XX86C are dependent upon external logic levels driving the ORG pin to set word size. In the SOT-23 package, the 93XX86A devices provide dedicated 8-bit memory organization, while the 93XX86B devices provide dedicated 16-bit memory organization. A Program Enable (PE) pin allows the user to write-protect the entire memory array. Advanced CMOS technology makes these devices ideal for low-power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN and 8-lead TSSOP. Pb-free (Pure Matte Sn) finish is available.
