93C66A

Features: •Low-power CMOS technology•ORG pin to select word size for '66C version•512 x 8-bit organization 'A' ver. devices (no ORG)•256 x 16-bit organization 'B' ver. devices (noORG)•Self-timed ERASE/WRITE cycles (includingauto-erase)•Automatic ERAL before WRAL...

product image

93C66A Picture
SeekIC No. : 004258438 Detail

93C66A: Features: •Low-power CMOS technology•ORG pin to select word size for '66C version•512 x 8-bit organization 'A' ver. devices (no ORG)•256 x 16-bit organization 'B' ver. device...

floor Price/Ceiling Price

Part Number:
93C66A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Low-power CMOS technology
•ORG pin to select word size for '66C version
•512 x 8-bit organization 'A' ver. devices (no ORG)
•256 x 16-bit organization 'B' ver. devices (noORG)
•Self-timed ERASE/WRITE cycles (includingauto-erase)
•Automatic ERAL before WRAL
•Power on/off data protection circuitry
•ndustry standard 3-wire serial I/O
•Device Status signal (READY/BUSY)
•Sequential READ function
•1,000,000 E/W cycles
•Data retention > 200 years
•Temperature ranges supported:- Industrial (I) -40°C to +85°C
- Automotive (E) -40°C to +125°C





Pinout

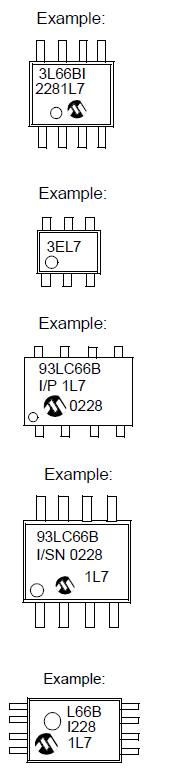

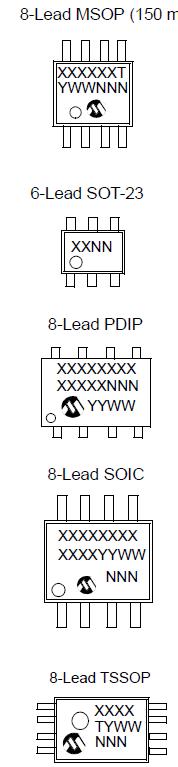

  Connection Diagram  Connection Diagram




Specifications

VCC.............................................................................................................................................7.0V
All inputs and outputs w.r.t. VSS .........................................................................-0.6V to VCC +1.0V
Storage temperature ..................................................................................................65 to +150
Ambient temperature with power applied...................................................................-40 to +125
ESD protection on all pins ........................................................................................................ 4 kV






Description

The Microchip Technology Inc. 93XX66A/B/C devices are 4K bit low voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA66C, 93LC66C or 93C66C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93AA66A, 93LC66A or 93C66A devices are available, while the 93AA66B, 93LC66B and 93C66B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for low power, non-volatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, and 8-lead TSSOP. Pb-free (Pure Matte Sn) finish is also available.
