9250A-472-RC, US $ .38-1.1 , J.W. Miller, 9250A-472-RC DataSheet download, circuit diagram from SeekIC.com

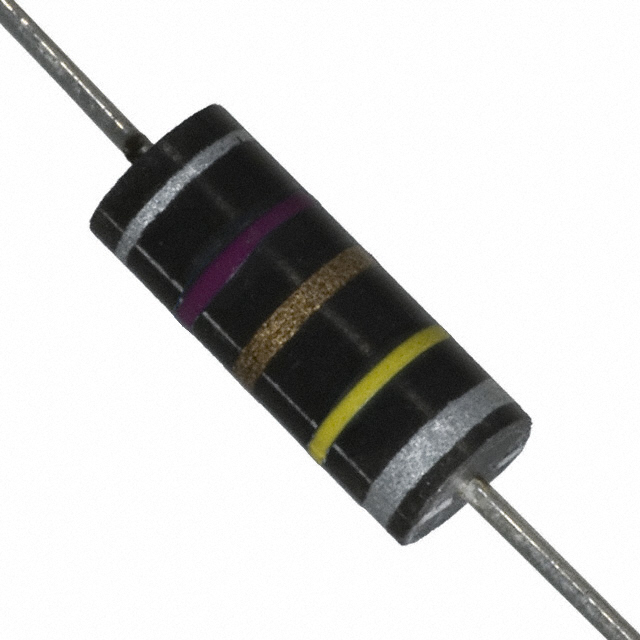

See larger image

SeekIC No. : 001211248 Detail

9250A-472-RC: RF Inductors 4.7uH 10%

9250A-472-RC Data Sheet

US $ .38~1.1 / Piece | Get Latest Price

Part Number:: 9250A-472-RC
Mfg:: J.W. Miller
Supply Ability:: 5000

Price Break

Qty
0~1
1~50
50~100
100~500

Unit Price
$1.1
$.55
$.48
$.38

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

9250-101 evaluate
RF Inductors 0.10uH 10%
9250-101-RC evaluate
RF Inductors 0.10uH 10%
9250-102 evaluate
RF Inductors 1.0uH 10%

Product Details

Quick Details

Inductance :	4.7 uH	Tolerance :	10 %
Maximum DC Current :	380 mAmps	Maximum DC Resistance :	0.55 Ohms
Self Resonant Frequency :	70 MHz	Q Minimum :	44
Operating Temperature Range :	- 55 C to + 125 C	Termination Style :	Axial

Description

Package / Case :
Operating Temperature Range : - 55 C to + 125 C
Inductance : 4.7 uH
Self Resonant Frequency : 70 MHz
Q Minimum : 44
Tolerance : 10 %
Maximum DC Resistance : 0.55 Ohms
Maximum DC Current : 380 mAmps
Termination Style : Axial

Parameters:

Technical/Catalog Information	9250A-472-RC
Vendor	JW Miller A Bourns Company
Category	Inductors, Coils, Chokes
Inductance	4.7H
Tolerance	±10%
Package / Case	Axial
Packaging	Bulk
Type	Iron Core
Current	380mA
Mounting Type	Through Hole
Q @ Freq	44 @ 7.9MHz
Self Resonant Freq	70MHz
DC Resistance (DCR)	550.0 mOhm Max
Shielding	Shielded
Applications	EMI Filter
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	9250A 472 RC 9250A472RC M10118 ND M10118ND M10118
