SeekIC No. : 001211826 Detail

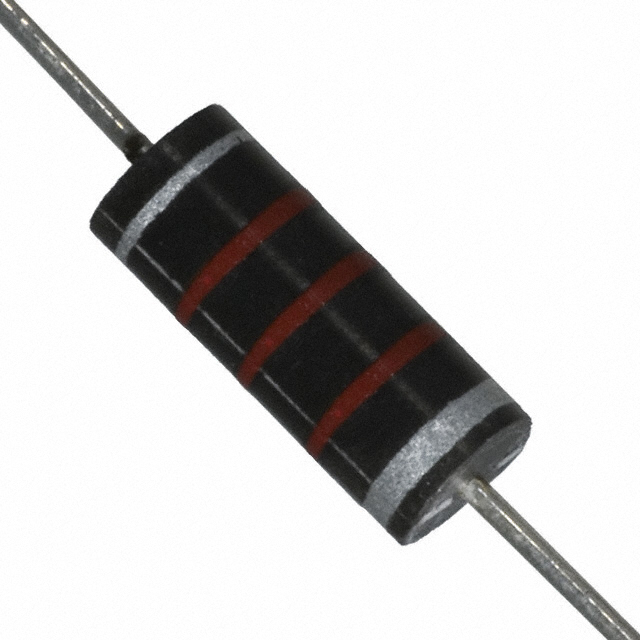

9250A-225-RC: RF Inductors 2.2mH 10%

9250A-225-RC Data Sheet

US $ .38~1.1 / Piece | Get Latest Price

Part Number:: 9250A-225-RC
Mfg:: J.W. Miller
Supply Ability:: 5000

Price Break

Qty
0~1
1~50
50~100
100~500

Unit Price
$1.1
$.55
$.48
$.38

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

9250-101 evaluate
RF Inductors 0.10uH 10%
9250-101-RC evaluate
RF Inductors 0.10uH 10%
9250-102 evaluate
RF Inductors 1.0uH 10%

Product Details

Quick Details

Inductance :	2.2 mH	Tolerance :	10 %
Maximum DC Current :	50 mAmps	Maximum DC Resistance :	33.8 Ohms
Self Resonant Frequency :	0.97 MHz	Q Minimum :	45
Operating Temperature Range :	- 55 C to + 125 C	Termination Style :	Axial

Description

Package / Case :
Operating Temperature Range : - 55 C to + 125 C
Tolerance : 10 %
Q Minimum : 45
Maximum DC Current : 50 mAmps
Termination Style : Axial
Inductance : 2.2 mH
Maximum DC Resistance : 33.8 Ohms
Self Resonant Frequency : 0.97 MHz

Parameters:

Technical/Catalog Information	9250A-225-RC
Vendor	JW Miller A Bourns Company
Category	Inductors, Coils, Chokes
Inductance	2.2mH
Tolerance	±10%
Package / Case	Axial
Packaging	Bulk
Type	Ferrite Core
Current	50mA
Mounting Type	Through Hole
Q @ Freq	45 @ 250kHz
Self Resonant Freq	970kHz
DC Resistance (DCR)	33.80 Ohm Max
Shielding	Shielded
Applications	EMI Filter
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	9250A 225 RC 9250A225RC M10103 ND M10103ND M10103
