8XL52

Features:

 High Performance CHMOS OTP ROM
Low Voltage Operation
20 MHz Commercial/16 MHz Express Operation
Three 16-Bit Timer/Counters
Up/Down Timer/Counter
Three Level Program Lock System
8K/16K/32K On-Chip Program Memory
256 Bytes of On-Chip Data RAM
Improved Quick Pulse Programming Algorithm
Boolean Processor
32 Programmable I/O Lines
6 Interrupt Sources
 Four Level Interrupt Priority
Programmable Serial Channel with:
    --Framing Error Detection
    --Automatic Address Recognition
64K External Program Memory Space
64K External Data Memory Space
MCSÉ 51 Microcontroller Compatible Instruction Set
Power Saving Idle and Power Down Modes
ONCE (On-Circuit Emulation) Mode
Extended Temperature Range (-40 to +85)

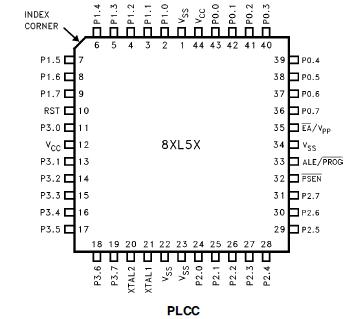

Pinout




Specifications

Ambient Temperature Under Bias......... -40 to a85
Storage Temperature .........................-65 to +150
Voltage on EA/VPP Pin to V_SS ................0V to +13.0V
Voltage on Any Other Pin to V_SS ........-0.5V to +6.5V
IOL per I/O Pin ................................................15 mA
Power Dissipation..............................................1.5W


Description

8XL52/8XL54/8XL58 can address up to 64 Kbytes of external program/data memory.

The Intel 8XL52/8XL54/8XL58 is a single-chip control oriented microcontroller which is fabricated on Intel's reliable CHMOS III-E technology. Being a member of the MCS 51 microcontroller family, the 8XL52/8XL54/ 8XL58 uses the same powerful instruction set, has the same architecture, and is pin-for-pin compatible with the existing MCS 51 microcontroller products.

The 8XL5X is a 3V version of current 8XC5X and will operate from 2.7V to 3.6V at a frequency range of 3.5 MHz to 16 MHz (Express)/20 MHz (Commercial).

For the remainder of this document, the 8XL52, 8XL54, 8XL58 will be referred to as the 8XL5X, unless information applies to a specific device.
