8XC51GB

Features: 8 Kbytes On-Chip ROMOTP ROM256 Bytes of On-Chip Data RAMTwo Programmable Counter Arrays with2 x 5 High Speed InputOutput Channels CompareCapturePulse Width ModulatorsWatchdog Timer CapabilitiesThree 16-Bit TimerCounters withFour Programmable ModesCapture Baud Rate Generation(Timer 2)Dedi...

product image

8XC51GB Picture
See larger image
SeekIC No. : 004257916 Detail

8XC51GB: Features: 8 Kbytes On-Chip ROMOTP ROM256 Bytes of On-Chip Data RAMTwo Programmable Counter Arrays with2 x 5 High Speed InputOutput Channels CompareCapturePulse Width ModulatorsWatchdog Timer Capabil...

8XC51GB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
8XC51GB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

8 Kbytes On-Chip ROMOTP ROM
256 Bytes of On-Chip Data RAM
Two Programmable Counter Arrays with2 x 5 High Speed InputOutput Channels CompareCapturePulse Width  ModulatorsWatchdog Timer Capabilities
Three 16-Bit TimerCounters withFour Programmable ModesCapture Baud Rate Generation(Timer 2)
Dedicated Watchdog Timer
8-Bit 8-Channel AD withEight 8-Bit Result RegistersFour Programmable Modes
Programmable Serial Channel withFraming Error DetectionAutomatic Address Recognition
Serial Expansion Port
Programmable Clock Out
Extended Temperature Range( -40to +85)
48 Programmable IO Lines with 40 Schmitt Trigger Inputs
15 Interrupt Sources with7 External 8 Internal Sources4 Programmable Priority Levels
Pre-Determined Port States on Reset
High Performance CHMOS Process
TTL and CHMOS Compatible Logic Levels
Power Saving Modes
64K External Data Memory Space
64K External Program Memory Space
Three Level Program Lock System
ONCE (ON-Circuit Emulation) Mode
Quick Pulse Programming Algorithm
MCSR 51 Microcontroller Fully Compatible Instruction Set
Boolean Processor
Oscillator Fail Detect
Available in 68-Pin PLCC


Pinout

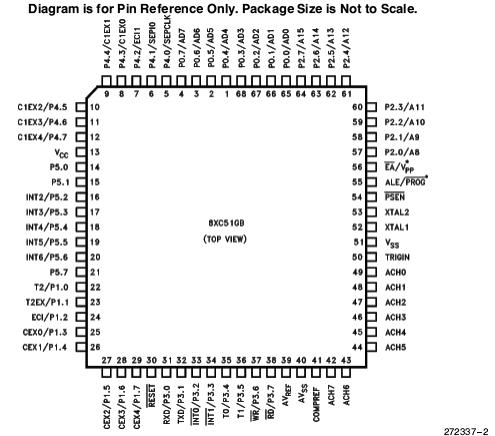

Connection Diagram
The 8XC51GB will be packaged in the 68-lead PLCC package Its pin assignment is shown in Figure 2
VCC Supply Voltage
VSS Circuit Ground


Specifications

Ambient TemperatureunderBias ......................0to 70
Storage Temperature............................. ....-65to 150
Voltage on EAVPP
    Pin to VSS ....................................................0Vto 130V
IOL per IO Pin .........................................................15mA
Voltage on Any Other
    Pin to VSS .................................................-0.5V to 65V
Power Dissipation .....................................................15W
(Based on Package heat transfer limitations not de- vice power consumption)OTP only
NOTICE This data sheet contains preliminary infor-mation on new products in production The specifica-tions are subject to change without notice Verify withyour local Intel Sales office that you have the latest data sheet before finalizing a design
WARNING Stressing the device beyond the ''Absolute Maximum Ratings'' may cause permanent damage These are stress ratings only Operation beyond the''Operating Conditions'' is not recommended and ex-tended exposure beyond the ''Operating Conditions''may affect device reliability
