8XC196NU

` 50 MHz Operation†
` 1 Mbyte of Linear Address Space
` Optional 48 Kbytes of ROM
` 1 Kbyte of Register RAM
` Register-register Architecture
` Footprint and Functionally Compatible Upgrade for the 8XC196NP
` 32 I/O Port Pins
` 16 Prioritized Interrupt Sources
` 4 External Interrupt Pins and NMI Pin
` 2 Flexible 16-bit Timer/Counters with Quadrature Counting Capability
` 3 Pulse-width Modulator (PWM) Outputs with High Drive Capability
` Full-duplex Serial Port with Dedicated Baud-rate Generator
` Peripheral Transaction Server
` Chip-select Unit
-6 Chip-select Pins
-Dynamic Demultiplexed/Multiplexed Address/Data Bus for Each Chip Select
-Programmable Wait States (03) for Each Chip Select
-Programmable Bus Width (8- or 16-bit) for Each Chip Select
-Programmable Address Range for Each Chip Select
` Event Processor Array (EPA) with 4 High-speed Capture/Compare Channels
` Multiply and Accumulate Executes in 640 ns Using the 32-bit Hardware Accumulator
` 960 ns 32/16 Unsigned Division

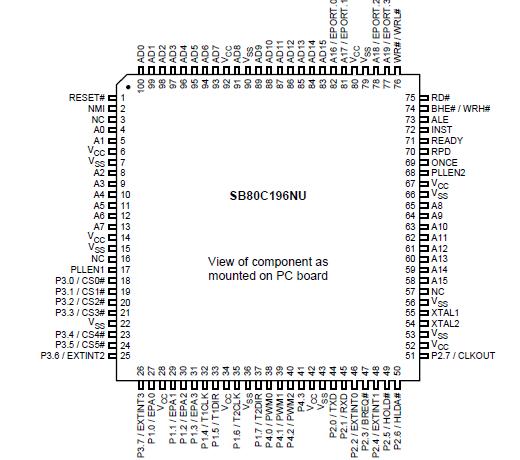

` 100-pin SQFP or 100-pin QFP Package
` Complete System Development Support
` High-speed CHMOS Technology
† 40 MHz standard; 50 MHz is Speed Premium

Storage Temperature ........................ 60°C to +150°C
Supply Voltage with Respect to V_SS.........0.5 V to +7.0 V
Power Dissipation .................................................... 1.5 W
OPERATING CONDITIONS*
T_A (Ambient Temperature Under Bias) .......0°C to +70°C
V_CC (Digital Supply Voltage) ........................ 4.5 V to 5.5 V
F_XTAL1 (Input frequency for V_CC = 4.5 V 5.5 V)
(Note 1, 2, 3)........................................ 16 MHz to 50 MHz

NOTES:
1. This device is static and should operate below
1 Hz, but has been tested only down to 16 MHz.
2. The maximum crystal that can be used is 25 MHz.
3. The minimum XTAL1 frequency when using the PLL is 8 MHz.

*WARNING: Stressing the device beyond the "Absolute Maximum Ratings" may cause permanent damage. These are stress ratings only. Operation beyond the "Operating Conditions" is not recommended and extended exposure beyond the "Operating Conditions" may affect device reliability.
