8XC196NP

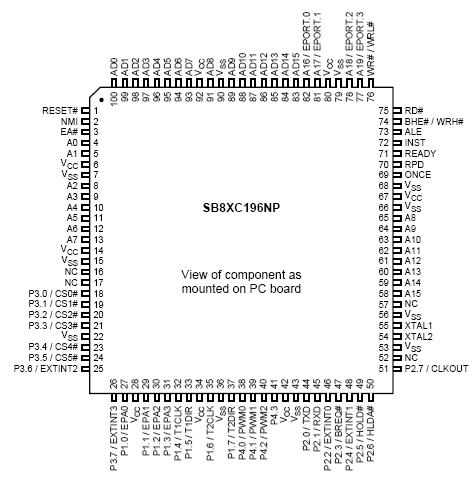

Pinout




Specifications

Storage Temperature .................................. 60°C to +150°C
Supply Voltage with Respect to V_SS ................. 0.5 V to +7.0 V
Power Dissipation ............................................................. 1.5 W


Description

The 8XC196NP is a member of Intel's 16-bit MCS^® 96 microcontroller family. The device features 1 Mbyte of linear address space, a demultiplexed bus, and a chip-select unit. The external bus can dynamically switch between multiplexed and demultiplexed operation. When operating at 25 MHz in demultiplexed mode, the 8XC196NP can access a 100 ns memory device with zero wait states. The 8XC196NP is available without ROM (80C196NP) or with 4 Kbytes of ROM (83C196NP).
