8XC196MC

Features: ` High-Performance CHMOS 16-Bit CPU` 16 Kbytes of On-Chip OTPROM/ Factory-Programmed OTPROM` 488 bytes of On-Chip Register RAM` Register to Register Architecture` Up to 53 I/O Lines` Peripheral Transaction Server (PTS) with 11 Prioritized Sources` Event Processor ArraY(EPA) 4 High Speed ...

product image

8XC196MC Picture
See larger image
SeekIC No. : 004257897 Detail

8XC196MC: Features: ` High-Performance CHMOS 16-Bit CPU` 16 Kbytes of On-Chip OTPROM/ Factory-Programmed OTPROM` 488 bytes of On-Chip Register RAM` Register to Register Architecture` Up to 53 I/O Lines` Perip...

8XC196MC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
8XC196MC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High-Performance CHMOS 16-Bit CPU
` 16 Kbytes of On-Chip OTPROM/ Factory-Programmed OTPROM
` 488 bytes of On-Chip Register RAM
` Register to Register Architecture
` Up to 53 I/O Lines
` Peripheral Transaction Server (PTS) with 11 Prioritized Sources
` Event Processor ArraY(EPA)
  4 High Speed Capture/Compare Modules
  4 High Speed Compare Modules
` Extended Temperature Standard
` Two 16-Bit Timers with Quadrature Decoder Input
` 3-Phase ComplementarYWaveform Generator
` 13 Channel 8/10-Bit A/D with Sample/ Hold with Zero Offset Adjustment H/W
` 14 Prioritized Interrupt Sources
` Flexible 8-/16-Bit External Bus
` 1.75 s 16 x 16 Multiply
` 3 s 32/16 Divide
` Idle and Power Down Modes


Pinout

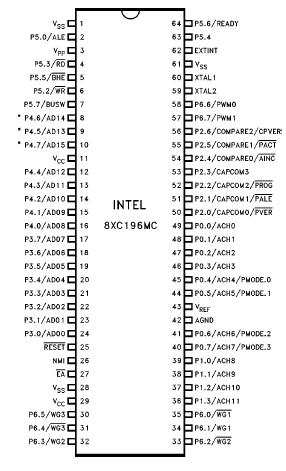

Connection Diagram


Specifications

Ambient Temperature Under Bias ....................-40°C to +85°C
Storage Temperature ....................................-65°C to +150°C
Voltage from EA or VPP to VSS or ANGND.....................+13.00V
Voltage on VPP or EQ to VSS or ANGND ..............-0.5V to 13.0V
Voltage on Any Other Pin to VSS or ANGND ....-0.5V to +7.0V(1)
Power Dissipation .........................................................1.5W(2)

NOTES:
1. This includes VPP and EA on ROM or CPU only devices.
2. Power dissipation is based on package heat transfer limitations,  not device power consumption.
