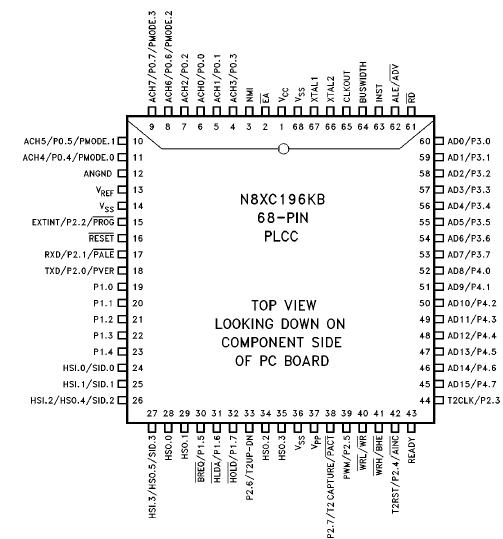

Pinout
SpecificationsAmbient Temperature
Under Bias ...............................................-55 to +125
Storage Temperature ..................................-65 to +150
Voltage On Any Pin to VSS.............................-0.5V to +7.0V
Power Dissipation(1) .....................................................1.5WDescriptionThe 8XC196KB is a 16-bit microcontroller available in three different memory varieties: ROMless (80C196KB), 8K ROM (83C196KB) and 8K OTP (One Time ProgrammableÐ87C196KB). The 8XC196KB is a high performance member of the MCSÉ 96 microcontroller family. The 8XC196KB has the same peripheral set as the 8096BH and has a true superset of the 8096BH instructions. Intel's CHMOS process provides a high performance processor along with low power consumption. To further reduce power requirements, the processor can
be placed into Idle or Powerdown Mode.
Bit, byte, word and some 32-bit operations are available on the 80C196KB. With a 16 MHz oscillator a 16-bit addition takes 0.50 s, and the instruction times average 0.37 ms to 1.1 s in typical applications.
Four high-speed capture inputs of 8XC196KB are provided to record times when events occur. Six high-speed outputs are available for pulse or waveform generation. The high-speed output can also generate four software timers or start an A/D conversion. Events can be based on the timer or up/down counter. Also provided on-chip are an A/D converter, serial port, watchdog timer and a pulse-width-modulated output signal.
The 8XC196KB has a maximum guaranteed frequency of 12 MHz. The 8XC196KB16 has a maximum guaranteed frequency of 16 MHz. All references to the 80C196KB also refer to the 80C196KB16; 83C196KB, Rxxx; 87C196KB and 87C196KB16 unless otherwise noted. The ROM device does not have a speed indicator at the end of the device name. Instead it has a ROM code number.
With the commercial (standard) temperature option, operational characteristics of 8XC196KB are guaranteed over the temperature range of 0 to +70. With the extended temperature range option, operational characteristics are guaranteed over the temperature range of -40 to +85.
Package Designators: N = 68-pin PLCC, S = 80-pin QFP (commercial only). Prefix Designators: T= Extended Temperature.
8XC196KB16 Data Sheet
