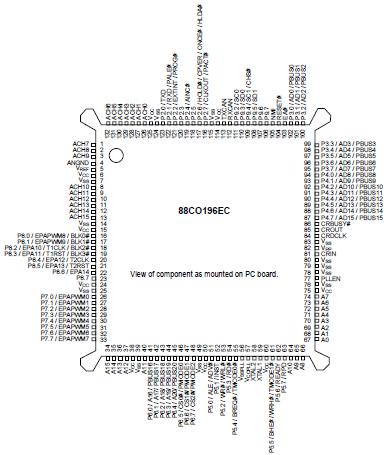

88CO196EC

• 256 Kbytes on-chip flash program memory
• 40 MHz operation
• Optional clock quadrupler
• Programmable clock output signal (CLKOUT)
• 2 Mbytes of linear address space
• 1.25 Kbytes of register RAM
• 2.75 Kbytes of code RAM
• Register-to-register architecture
• Stack overflow/underflow monitor with user-defined upper and lower stack pointer boundary limits
• Two peripheral interrupt handlers (PIHs) provide direct hardware handling of up to 45 interrupts
• Up to 59 I/O port pins
• Full-duplex serial port with dedicated baud-rate generator
• Enhanced synchronous serial I/O unit (SSIO)
• 16 10-bit A/D channels with auto-scan mode and dedicated results registers
• Controller area network (CAN) 2.0 networking protocol
• Serial debug unit provides read and write access to code RAM with no CPU overhead
• Chip-select unit (CSU)
   - Three chip-select pins
   - Dynamic demultiplexed/multiplexed address/data bus for each chip-select
   - Programmable wait states(0, 1, 2, or 3) for each chip-select
   - Programmable bus width (8- or 16-bit) for each chip-select
   - Programmable address range for each chip-select
• Event processor array (EPA)
   - Two flexible 16-bit timer/counters
   - Five high-speed capture/compare channels with a lock feature for noise filtering
   - 10 enhanced high-speed capture/compare channels with period and duty cycle measurement capability,as well as a lock feature for noise filtering
• Complete system development support
• Packaging
   - 132-pin PQFP
• Temperature Offerings
   - Commercial (0C - 70C)
   - Extended (-40C - 85C)

Storage Temperature ................................... 60°C to +150°C
V_CC Supply Voltage with Respect to V_SS .......... 0.5 V to +6.0 V
V_PP (maximum) ..................................................................13.0 V
Power Dissipation............................................................... 1.5 W

NOTICE:This datasheet contains information on products being sampled or in the initial production phase of development. The specifications are subject to change without notice. Verify with your local Intel sales office that you
have the latest datasheet before finalizing a design
