87C754

Features:

*Available in erasable quartz lid or One-Time Programmable plastic packages
*80C51-based architecture
*Small package sizes 28-pin SSOP
*Wide oscillator frequency range
*Power control modes:
  Idle mode
  Power-down mode
*4k * 8 ROM (83C754) EPROM (87C754)
*256 * 8 RAM
*Two 16-bit auto reloadable counter/timers
*Single module PCA counter/timer
*Full duplex serial channel
*Boolean processor
*CMOS and TTL compatible

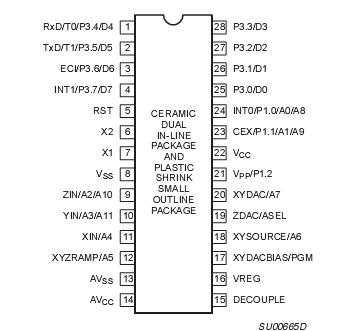

Pinout




Specifications

PARAMETER	RATING	UNIT
Storage temperature range	65 to +150
Voltage from VCC  to VSS	0.5 to +6.5	V
Voltage from any pin to V SS (except VPP )	0.5 to VCC  + 0.5	V
Power dissipation	1.0	W
Voltage from VPP  pin to V SS	0.5 to + 13.0	V

Description

The Philips 83C754/87C754 offers many of the advantages of the 80C51 architecture in a small package and at low cost.
The 8XC754 Microcontroller is fabricated with Philips high-density CMOS technology. Philips epitaxial substrate minimizes CMOS latch-up senitivity.
The 8XC754 contains a 4k × 8 ROM (83C754) EPROM (87C754), a single module PCA, a 256 × 8 RAM, 11 I/O lines, two 16-bit counter/timers, a two-priority level interrupt structure, a full duplex serial channel, an on-chip oscillator, and an 8-bit D/A converter.
The EPROM version of this device, the 87C754, is available in plastic one-time programmable (OTP) packages. Once the array has been programmed, it ifs functionally equivalent to the masked ROM 83C754. Thus, unless explicitly stated otherwise, all references made to the 87C754 apply equally to the 83C754.
The 8XC754 supports two power reduction modes of operation referred to as the idle mode and the power-down mode.
