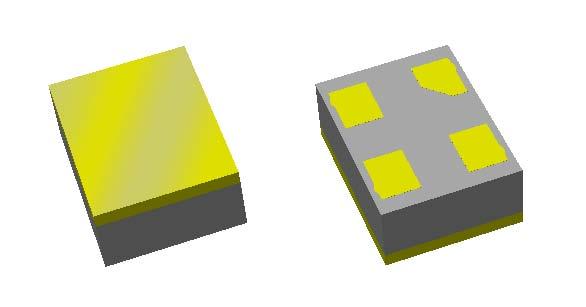

See larger image

SeekIC No. : 001684676 Detail

856584: Signal Conditioning 1575.42/2MHz Filter

856584 Data Sheet

Get Latest Price

Part Number:: 856584
Mfg:: TriQuint Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

8565 evaluate
US $3.67 - 4.93 / Piece

Knobs & Dials .610x.700 Inst Knob ABS Spun Alum
856503 evaluate
US $1.1 - 1.31 / Piece

Signal Conditioning 836.5/25MHz Filter
856504 evaluate
US $1.1 - 1.31 / Piece

Signal Conditioning 881.5/25MHz Filter

Product Details

Quick Details

Product :	SAW Filters	Frequency :	1575.42 MHz
Frequency Range :	1574.42 MHz to 1576.42 MHz	Impedance :	50 Ohms
Termination Style :	SMD/SMT	Package / Case :	2 mm x 1.5 mm
Operating Temperature Range :	- 40 C to + 85 C	Packaging :	Reel

Description

Voltage Rating :
Bandwidth :
Impedance : 50 Ohms
Termination Style : SMD/SMT
Operating Temperature Range : - 40 C to + 85 C
Packaging : Reel
Product : SAW Filters
Frequency : 1575.42 MHz
Frequency Range : 1574.42 MHz to 1576.42 MHz
Package / Case : 2 mm x 1.5 mm

Features:

• For GPS applications
• Usable bandwidth 2 MHz
• Very Low loss
• Single-ended operation at 50
• No impedance matching required for operation at 50
• Single-ended operation
• Ceramic Chip Scale Package (CSP)
• Hermetic
• RoHS compliant (2002/95/EC), Pb-free

Specifications

Parameter	Symbol	Minimum	Maximum	Unit
Operating Temperature Range	T	-40	+85
Storage Temperature Range	T_stg	-40	+85

Parameters:

Technical/Catalog Information	856584
Vendor	Triquint Semiconductor Inc (VA)
Category	Filters
Filter Type	Bandpass
Packaging	Cut Tape (CT)
Package / Case	0.079" L x 0.059" W x 0.030" H (2.00mm x 1.50mm x 0.76mm)
Applications	GPS
Frequency	1.575GHz Center
Insertion Loss	1.25dB
Bandwidth	2MHz
Mounting Type	Surface Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	856584 856584 779 1005 1 ND 77910051ND 779-1005-1
