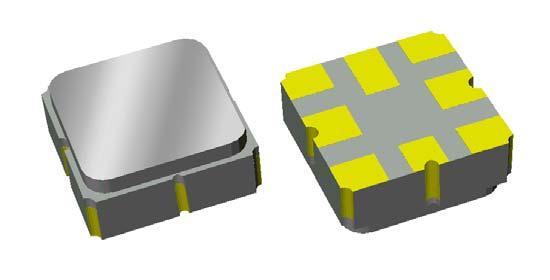

See larger image

SeekIC No. : 001682898 Detail

856288: Signal Conditioning 465/6MHz Filter

856288 Data Sheet

US $ 3.28~8.56 / Piece | Get Latest Price

Part Number:: 856288
Mfg:: TriQuint Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$8.56
$5.77
$4.26
$3.28

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

856211-1 evaluate
US $109.25 - 123.35 / Piece

Hand Tools CONT STUFFER, 8 POS
856211-2 evaluate
US $100.82 - 104.83 / Piece

Hand Tools CONTACT STUFFER 8-POS
856217 evaluate
Features: • For GPS applications• Usable bandwidth 2 MHz• Very Low loss• S...

Product Details

Quick Details

Product :	SAW Filters	Frequency :	465 MHz
Frequency Range :	462 MHz to 468 MHz	Impedance :	50 Ohms
Termination Style :	SMD/SMT	Package / Case :	3 mm x 3 mm
Operating Temperature Range :	- 40 C to + 85 C	Packaging :	Reel

Description

Voltage Rating :
Bandwidth :
Impedance : 50 Ohms
Termination Style : SMD/SMT
Operating Temperature Range : - 40 C to + 85 C
Packaging : Reel
Product : SAW Filters
Package / Case : 3 mm x 3 mm
Frequency : 465 MHz
Frequency Range : 462 MHz to 468 MHz

Features:

• For FRS applications
• Usable bandwidth 6 MHz
• Low loss
• High attenuation
• No impedance matching required for operation at 50 Ω
• Single-ended operation
• Ceramic Surface Mount Package (SMP)
• Small size

Specifications

Parameter	Symbol	Minimum	Maximum	Unit
Operating Temperature Range	T	-40	+85
Storage Temperature Range	T_stg	-40	+85

Parameters:

Technical/Catalog Information	856288
Vendor	Triquint Semiconductor Inc
Category	Filters
Filter Type	Bandpass
Packaging	Tape & Reel (TR)
Package / Case	0.118" L x 0.118" W x 0.048" H (3.00mm x 3.00mm x 1.22mm)
Applications	FRS
Frequency	465MHz Center
Insertion Loss	1.43dB
Bandwidth	6MHz
Mounting Type	Surface Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	856288 856288
