8442AYLF

Packaging :
Output Level : LVDS
Input Level : LVTTL, LVCMOS
Number of Outputs : 3
Supply Voltage - Max : 3.465 V
Supply Voltage - Min : 3.135 V
Max Input Freq : 50 MHz

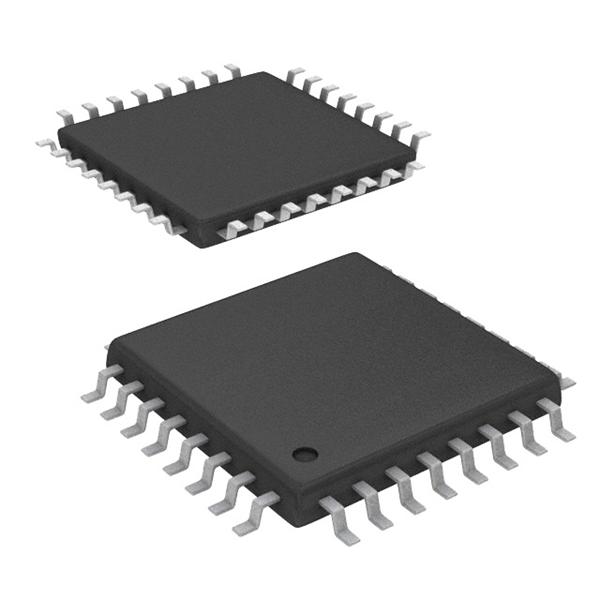

Package / Case : TQFP-32
Max Output Freq : 700 MHz


Specifications

Temperature C Voltage 3.3 V Package TQFP 32 Speed NA VCXO Output Supply Voltage (VDDO) No. of Outputs Output Style Max. Output Frequency Max. Input Frequency Min. Input Frequency Spread Spectrum Core Supply Voltage (VDD) Input Style Min. Output Frequency Temp. Grade No. of Inputs


Description

2 LVCMOS OUT SYNTHESIZER
ICS8442I Features

• Dual differential LVDS outputs
• Selectable crystal oscillator interface orLVCMOS/LVTTL TEST_CLK
• Output frequency range: 31.25MHz to 700MHz
• Crystal input frequency range: 10MHz to 25MHz
• VCO range: 250MHz to 700MHz
• Parallel or serial interface for programming counter and output dividers
• RMS period jitter: 3.5ps (typical)
• Cycle-to-cycle jitter: 18ps (typical)
• 3.3V supply voltage
• -40°C to 85°C ambient operating temperature

Description
The ICS8442I is a general purpose, dual output Crystal-to-Differential LVDS High Frequency Synthesizer and a member of the HiPerClockS? family of High Performance Clock Solutions from IDT. The ICS8442I has a selectable TEST_CLK or crystal input. The TEST_CLK input accepts LVCMOS or LVTTL input levels and translates them to LVDS levels. The VCO operates at a frequency range of 250MHz to 700MHz. The VCO frequency is programmed in steps equal to the value of the input reference or crystal frequency. The VCO and output frequency can be programmed using the serial or parallel interface to the configuration logic. The low phase noise characteristics of the ICS8442I makes it an ideal clock source for Gigabit Ethernet and Sonet applications.
