83C752

Features:

*Available in erasable quartz lid or One-Time Programmable plastic packages
*80C51 based architecture
*Inter-integrated Circuit (I²C) serial bus interface
*Small package sizes
  28-pin DIP
  28-pin PLCC
  28-pin SSOP
*Wide oscillator frequency range
*Low power consumption:
  Normal operation: less than 11mA @ 5 V, 12 MHz
  Idle mode
  Power-down mode
*2k * 8 ROM (83C752)  EPROM (87C752)
*64 * 8 RAM
*16-bit auto reloadable counter/timer
*5-channel 8-bit A/D converter
*8-bit PWM output/timer
*Fixed-rate timer
*Boolean processor
*CMOS and TTL compatible
*Well suited for logic replacement, consumer and industrial applications

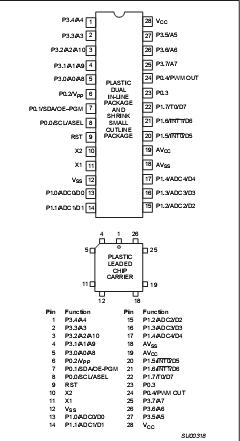

Pinout




Specifications

PARAMETER	RATING	UNIT
Storage temperature range	65 to +150
Voltage from VCC to VSS	0.5 to +6.5	V
Voltage from any pin to VSS  (except VPP )	0.5 to V CC + 0.5	V
Power dissipation	1.0	W
Voltage from VPP pin to VSS	0.5 to + 13.0	V

Description

The Philips 83C752/87C752 offers many of the advantages of the 80C51 architecture in a small package and at low cost.
The 8XC752 Microcontroller is fabricated with Philips high-density CMOS technology. Philips epitaxial substrate minimizes CMOS latch-up sensitivity.
The 8XC752 contains a 2k × 8 ROM (83C752) EPROM (87C752), a 64 × 8 RAM, 21 I²/O lines, a 16-bit auto-reload counter/timer, a fixed-priority level interrupt structure, a bidirectional inter-integrated circuit (I² C) serial bus interface, an on-chip oscillator, a five channel multiplexed 8-bit A/D converter, and an 8-bit PWM output.
The onboard inter-integrated circuit (I²C) bus interface allows the 8XC752 to operate as a master or slave device on the I²C small area network. This capability facilitates I/O and RAM expansion, access to EEPROM, processor-to-processor communication, and efficient interface to a wide variety of dedicated I C peripherals.
The EPROM version of this device, the 87C752, is available in both quartz-lid erasable and plastic one-time programmable (OTP) packages. Once the array has been programmed, it is functionally equivalent to the masked ROM 83C752. Thus, unless explicitly stated otherwise, all references made to the 83C752 apply equally to the 87C752.
The 83C752 supports two power reduction modes of operation referred to as the idle mode and the power-down mode.
