83C550

Features: •80C51 based architecture 4k ×8 EPROM (87C550)/ROM (83C550) 128 ×8 RAM Eight channels of 8-bit A/D Two 16-bit counter/timers Watchdog timer Full duplex serial channel Boolean processor•Memory addressing capability 64k ROM and 64k RAM•Power control modes: Idle mode Power...

product image

83C550 Picture
See larger image
SeekIC No. : 004255923 Detail

83C550: Features: •80C51 based architecture 4k ×8 EPROM (87C550)/ROM (83C550) 128 ×8 RAM Eight channels of 8-bit A/D Two 16-bit counter/timers Watchdog timer Full duplex serial channel Boolean process...

83C550 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
83C550
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•80C51 based architecture
  4k × 8 EPROM (87C550)/ROM (83C550)
  128 × 8 RAM
  Eight channels of 8-bit A/D
  Two 16-bit counter/timers
  Watchdog timer
  Full duplex serial channel
  Boolean processor
•Memory addressing capability
  64k ROM and 64k RAM
•Power control modes:
  Idle mode
  Power-down mode
•CMOS and TTL compatible
•One speed range at VCC = 5V ±10%
  3.5 to 16MHz
•Extended temperature ranges
•OTP package available


Pinout

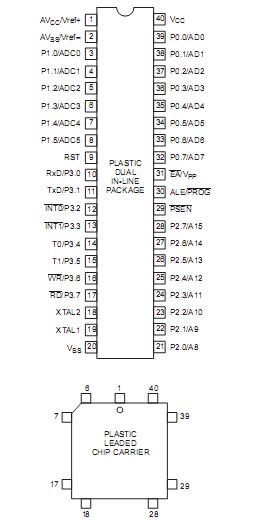

Connection Diagram


Specifications

PARAMETER RATING UNIT
Operating temperature under bias 40 to +85 °C
Storage temperature range 65 to +150 °C
Voltage on EA /VPPpin to VSS(87C550 only) 0 to +13.0 V
Voltage on any other pin to VSS 0.5 to +6.5 V
Input, output current on any two I/O pins ±10 mA
Power dissipation (based on package heat transfer limitations, not device power consumption) 1.5 W



Description

The 8XC550 contains a 4k * 8 EPROM (87C550)/ROM(83C550)/ROMless (80C550 has no program memory on-chip), a128 * 8 RAM, 8 channels of 8-bit A/D, four 8-bit ports (port 1 is inputonly), awatchdogtimer,two16bitcounter/timers, a seven-source,two-priority level nested interrupt structure, a serial I/O port for either multi-processor communications, I/O expansion or full duplex UART,and an on-chip oscillator and clock circuits.

In addition, the 8XC550 has two software selectable modes of power reduction-idle mode and power-down mode. The idle mode freezes the CPU while allowing the RAM, timers, serial port, and interrupt system to continue functioning. The power-down mode saves the RAM contents but freezes the oscillator, causing all other chip functions to be inoperative.
