82C87H

Features:

• Full Eight Bit Bi-Directional Bus Interface
• Industry Standard 8287 Compatible Pinout
• High Drive Capability
- B Side IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
- A Side IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12mA
• Three-State Inverting Outputs
• Propagation Delay . . . . . . . . . . . . . . . . . . . . . 35ns Max.
• Gated Inputs
- Reduce Operating Power
- Eliminate the Need for Pull-Up Resistors
• Single 5V Power Supply
• Low Power Operation . . . . . . . . . . . . . . . ICCSB = 10mA
• Operating Temperature Range
- C82C87H . . . . . . . . . . . . . . . . . . . . . . . . . 0oC to +70oC
- I82C87H . . . . . . . . . . . . . . . . . . . . . . . . -40oC to +85oC
- M82C87H . . . . . . . . . . . . . . . . . . . . . . -55oC to +125oC

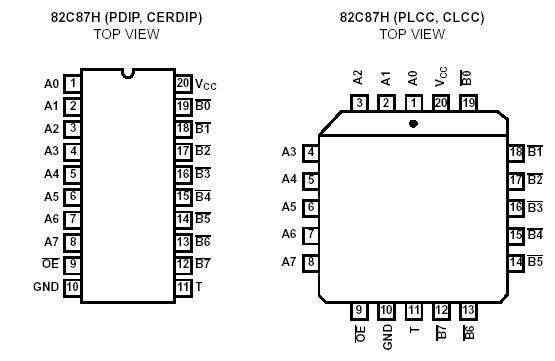

Pinout




Description

The Intersil 82C87H is a high performance CMOS Octal
Transceiver manufactured using a self-aligned silicon gate
CMOS process (Scaled SAJI IV). The 82C87H provides a full
eight-bit bi-directional bus interface in a 20 pin package. The
Transmit (T) control determines the data direction. The active
low output enable (OE) permits simple interface to the
80C86, 80C88 and other microprocessors. The 82C87H has
gated inputs, eliminating the need for pull-up/pull-down resistors
and reducing overall system operating power dissipation.
The 82C87H provides inverted data at the outputs.
