82C54

Features:

Compatible with all Intel and most other microprocessors
High Speed ''Zero Wait State''Operation with 8 MHz 808688 and 80186188
Handles Inputs from DC
-10 MHz for 82C54-2
Available in EXPRESS
-Standard Temperature Range
-Extended Temperature Range
Three independent 16-bit counters
Low Power CHMOS
- I_CC10 mA® 8 MHz Count frequency
Completely TTL Compatible
Six Programmable Counter Modes
Binary or BCD counting
Status Read Back Command
Available in 24-Pin DIP and 28-Pin PLCC

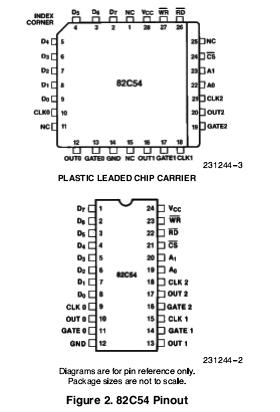

Pinout






Specifications

Ambient TemperatureUnderBias................................0to70
Storage Temperature........................... ............-65 to +15
SupplyVoltage..................................................... -0.5 to+ 8.0V
Operating Voltage................................... ...............+4Vto +7V
Voltage on anyInput.....................................GND -2Vto+ 6.5V
Voltage on anyOutput .........................GND -0.5V toV_CC +0.5V
Power Dissipation.......................................................... 1Watt
NOTICE This is a production data sheet The specifi cations are subject to change without notice
WARNING Stressing the device beyond the ''Absolute Maximum Ratings'' may cause permanent damage These are stress ratings only Operation beyond the''Operating Conditions'' is not recommended and ex-tended exposure beyond the ''Operating Conditions''may affect device reliability




Description

The Intersil 82C54 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS process. The 82C54 has three independently programmable and functional 16-bit counters, each capable of handling clock input frequencies of up to 8MHz (82C54) or 10MHz (82C54-10) or 12MHz (82C54-12). The high speed and industry standard configuration of the 82C54 make it compatible with the Intersil 80C86, 80C88, and 80C286 CMOS microprocessors along with many other industry standard processors. Six programmable timer modes allow the 82C54 to be used as an event counter, elapsed time indicator, programmable one-shot, and many other applications. Static CMOS circuit design insures low power operation. The Intersil advanced CMOS process results in a significant reduction in power with performance equal to or greater than existing equivalent products.
