Features:

* Generates System Clock for 80C286 Processors
* Generates System Reset Output from Schmitt Trigger Input
   - Improved Hysteresis
* Uses Crystal or External Signal for Frequency Source
* Dynamically Switchable between Two Input Frequencies
* Provides Local READY and MULTIBUS® READY Synchronization
* Static CMOS Technology
* Single +5V Power Supply
* Available in 18 Lead CerDIP Package


Pinout

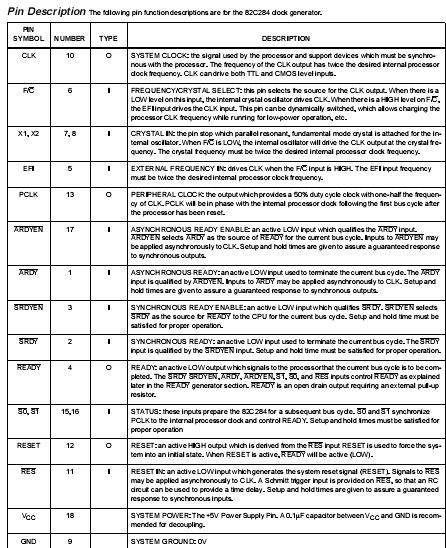

Connection Diagram Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+8.0V
Input, Output or I/O Voltage Applied. . . . . ..GND -0.5V to VCC +0.5V
Storage Temperature Range . . . . . . . . . . . . . . . . ..-65  to +150


Description

The Intersil 82C284 is a clock generator/driver which provides clock signals for 80C286 processors and support components. 82C284 also contains logic to supply READY to the CPU from either asynchronous or synchronous sources and synchronous RESET from an asynchronous input with hysteresis.
