Color
:
Contact Plating
:
Contact Material
:
Insulation
: Not Insulated
Gender
: Male
Wire Gauge
: 22-18
Product
: Tab Terminals
Stud / Tab Size
: 6.4 mm x 0.81 mm
Termination Style
: Quick Fit
Features: LNB selection and standby function
Built-in tone oscillator factory trimmed to 22-kHz, facilitatesDiSEqC(TM) (a trademark of EUTELSAT) encoding
Tracking switch-mode power converter for lowest dissipation
Externally adjustable short-circuit protection
LNB short-circuit protection and diagnostics
Auxiliary modulation input
Internal over-temperature protection
Reverse-current protection

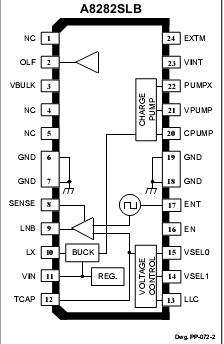

Cable length compensation (A8282SLB only)Pinout
SpecificationsSupply Voltage, VIN ........................... 47-V
Output Current, ILNB .... Internally Limited
Output Voltage Range, VLNB .. -1-V to +22-V
Logic Input Voltage Range,
VI................................... -0.3-V to +7-V
Flag Output Voltage, VOLF ................. 7-V
Operating Temperature Range,
TA ................................. -20to +85
Junction Temperature, TJ.............. +150
Storage Temperature Range,
TS .............................. -55 to +150DescriptionA8282SLB is intended for analog and digital satellite receivers, these low-noise block converter regulators (LNBRs) are monolithic linear and switching voltage regulators specifically designed to provide the power and interface signals to the LNB down converter via the coaxial cable. If the A8282SLB is in standby mode (EN terminal low), the regulator output is disabled, allowing the antenna down converters to be supplied or controlled by other satellite receivers sharing the same coaxial cable. In this mode, the A8282SLB will limit the output reverse current.
The A8281SLB output is set to 13 or 18-V by the VSEL terminal. It is supplied in a 16-lead SOIC power-tab package. The power tabs are at ground potential and need no electrical isolation.
The A8282SLB output is set to 12, 13, 18, or 20-V by the VSEL terminals. Additionally, it is possible to increase the selected voltage by 1-V to compensate for the voltage drop in the coaxial cable (LLC terminal high). A8282SLB is supplied in a 24-lead SOIC power-tab package. The power tabs are at ground potential and need no electrical isolation. The A8282SLB is an improved version of the A8283SLB, without a bypass switch.
Parameters: Technical/Catalog Information | 8282 |
Vendor | Keystone Electronics |
Category | Connectors |
Color | - |
Features | - |
Gender | Male |
Insulation | Non-Insulated |
Length - Overall | 0.730" (18.54mm) |
Mounting Type | Free Hanging (In-Line) |
Packaging | Bulk |
Tab Thickness | 0.032" (0.81mm) |
Tab Width | 0.250" (6.35mm) |
Tab Length | - |
Terminal Type | Standard |
Termination | Crimp |
Wire Gauge | 18-22 AWG |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 8282 8282 8282K ND 8282KND 8282K |
