Features:

PCI Bus Interface
   -Supports PCI at 33 MHz
   -Supports PCI Rev 2.2 Specification
   -133 MByte/sec Maximum Throughput
   -Master PCI Device Support: up to 6 for the ICH and up to 4 for the ICH0
Integrated IDE Controller
   -Independent Timing of Up to 4 Drives
   -The ICH Supports Ultra ATA/66 Mode (66 Mbytes/sec)
   -Supports Ultra ATA/33 Mode (33 Mbytes/sec)
   -PIO Mode 4 Transfers up to 14 Mbytes/s
   -Separate IDE Connections for Primary and Secondary Cables
   -Implements Write Ping-Pong Buffer for faster write performance
USB
   -UHCI Implementation With 2 Ports
   -Supports Wake-up From Sleeping States   S1-S4
   -Supports Legacy Keyboard/Mouse Software
   -USB Revision 1.1 Compliant
AC'97 Link for Audio and Telephony CODECs
   -AC'97 2.1 Compliant
   -5 Independent Bus Master Logic for PCM In,PCM Out, Mic Input, Modem In, Modem Out
   -Separate Independent PCI Functions for Audio and Modem
   -Supports wake-up events
Interrupt Controller
   -Two Cascaded 82C59
   -Integrated I/O APIC Capability
   -15 Interrupts Support in 8259 Mode, 24 Supported in I/O APIC Mode.
   -Supports Serial Interrupt Protocol
Timers Based on 82C54
System Timer, Refresh Request, Speaker Tone Output
3.3 V Operation With 5 V Tolerant Buffers for IDE and PCI signals.
241 BGA package
GPIO
   -TTL, Open-Drain, Inversion
Power Management Logic
   -ACPI 1.0 Compliant
   -Support for APM-Based Legacy Power Management for Non-ACPI Implementations
   -ACPI Defined Power States (S1, S3, S4, S5)
   -ACPI Power Management Timer
   -SMI# Generation
   -All Registers Readable/Restorable for Proper Resume from 0 V Suspend States
   -PCI PME#
Low Pin count (LPC) Interface
   -Allows Connection of Legacy ISA and X-Bus Devices such as Super I/O
   -Supports Two Master/DMA Devices.
Enhanced DMA Controller
   -Two Cascaded 8237 DMA Controllers
   -PCI DMA: Supports PC/PCI - Includes Two PC/PCI REQ#/GNT# Pairs
   -Supports LPC DMA
   -Supports DMA Collection Buffer to Provide Type-F DMA Performance for All DMA Channels
Real - Time Clock
   -256-byte Battery-Backed CMOS RAM
   -Hardware implementation to indicate Century Rollover
System TCO Reduction Circuits
   -Timers to Generate SMI# and Reset Upon Detection of locked system
   -Timers to Detect Improper Processor Reset
   -Integrated Processor Frequency Strap Logic
SM Bus
   -Host Interface Allows Processor to Communicate via SM Bus
   -Compatible With Most 2-Wire Components that are Also I² C compatible
Supports ISA Bus via External PCI-ISA Bridge
Firmware Hub (FWH) Interface The 82801AA provides Alert On LAN*
Support

Pinout

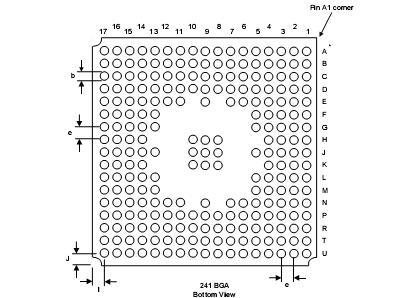

Connection Diagram

Specifications

Case Temperature under Bias. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0to +100
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. -55 to +150
Voltage on Any 3.3V Pin with Respect to Ground. . . . . . . . . . . . . . . . . . .....-0.5V to Vcc + 0.3V
Voltage on Any 5V Tolerant Pin with Respect to Ground (VREF=5V). . .....-0.5V to VREF + 0.3V
1.8V Supply Voltage with Respect to Vss . . . . . . . . . . . . . . . . . . . . . . . ..-0.3V to VREF + 2.7V
3.3V Supply Voltage with Respect to Vss . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .-0.5V to +4.6V
5.0V Supply Voltage (Vref) with Respect to Vss . . . . . . . . . . . . . . . . . . . . . . ...-0.5V to +5.5V
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4 W
