82596CA

Features: Performs Complete CSMACD Medium Access Control (MAC) Functions Independently of CPU -IEEE 8023 (EOC) Frame DelimitingSupports Industry Standard LANsIEEE TYPE 10BASE-T -IEEE TYPE 10BASE5 (Ethernet) -IEEE TYPE 10BASE2 (Cheapernet) -IEEE TYPE 1BASE5 (StarLAN) and the Proposed Standard 10BAS...

product image

82596CA Picture
See larger image
SeekIC No. : 004255616 Detail

82596CA: Features: Performs Complete CSMACD Medium Access Control (MAC) Functions Independently of CPU -IEEE 8023 (EOC) Frame DelimitingSupports Industry Standard LANsIEEE TYPE 10BASE-T -IEEE TYPE 10BASE5 (E...

82596CA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
82596CA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Performs Complete CSMACD Medium Access Control (MAC) Functions Independently of CPU
   -IEEE 8023 (EOC) Frame Delimiting
Supports Industry Standard LANsIEEE TYPE 10BASE-T
   -IEEE TYPE 10BASE5 (Ethernet)
   -IEEE TYPE 10BASE2 (Cheapernet)
   -IEEE TYPE 1BASE5 (StarLAN) and the Proposed Standard 10BASE-F
   -Proprietary CSMACD Networks Up to 20 Mbs
On-Chip Memory Management
   -Automatic Buffer ChainingBuffer Reclamation after Receipt of
   -Bad Frames Optional Save Bad Frames
   -32-Bit Segmented or Linear (Flat) Memory Addressing Formats
Network Management and Diagnostics
   -Monitor Mode
   -32-Bit Statistical Counters
82586 Software Compatible
Self-Test Diagnostics
Optimized CPU Interface
   -Optimized Bus Interface to Intel's i486TM DX i486TM SX i487TM SX and 80960CA Processors
   -33 MHz 25 MHz 20 MHz and 16 MHz Clock Frequencies
   -Supports Big Endian and Little Endian Byte Ordering
32-Bit Bus Master Interface
   -106 MBs Bus Bandwidth
   -Burst Bus Transfers
   -Bus Throttle Timers
   -Transfers Data at 100% of Serial Bandwidth
   -128-Byte Receive FIFO 64-Byte Transmit FIFO
Configurable Initialization Root for Data Structures
High-Speed 5V CHMOS IV Technology
132-Pin Plastic Quad Flat Pack (PQFP) and PGA Package


Pinout

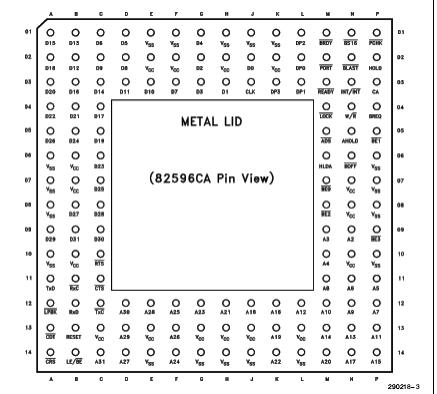

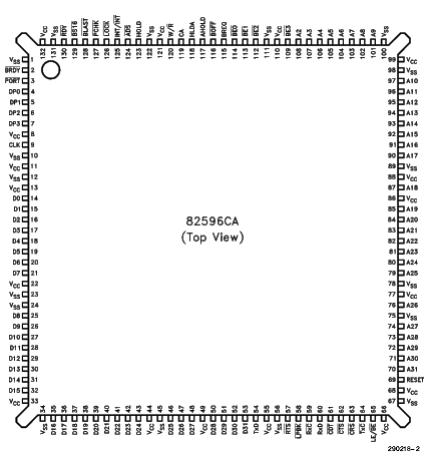

Connection Diagram Connection Diagram


Specifications

StorageTemperature........................ .................................-65to+ 150
Case TemperatureunderBias.................... -65to +110 Supply Voltage
with Respect to VSS..........................................................- 0.5V to +6.5V
Voltage onOtherPins..................................................- 0.5V toVCC +0.5V
