82595FX

Features: Optimal Integration for Lowest Cost Solution -Glueless 8-Bit16-Bit ISA Bus Interface -Provides Fully 8023 Compliant AUI and TPE Serial Interface -Local SRAM Support up to 64 Kbytes -Integrated ISA Bus Data Transceivers -FLASHEPROM Boot Support up to 1 Mbyte for Diskless Workstations -Har...

product image

82595FX Picture
See larger image
SeekIC No. : 004255614 Detail

82595FX: Features: Optimal Integration for Lowest Cost Solution -Glueless 8-Bit16-Bit ISA Bus Interface -Provides Fully 8023 Compliant AUI and TPE Serial Interface -Local SRAM Support up to 64 Kbytes -Integr...

82595FX Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
82595FX
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Optimal Integration for Lowest Cost Solution
   -Glueless 8-Bit16-Bit ISA Bus Interface
   -Provides Fully 8023 Compliant AUI and TPE Serial Interface
   -Local SRAM Support up to 64 Kbytes
   -Integrated ISA Bus Data Transceivers
   -FLASHEPROM Boot Support up to 1 Mbyte for Diskless Workstations
   -Hardware and Software Portable between Motherboard and Adapter Card Solutions
High Performance Networking Functions
   -Advanced Concurrent Processing of Receive and Transmit Functions
   -16-Bit32-Bit IO Accesses to Local SRAM with Zero Added Wait-States
   -Ring Buffer Structure for Continuous Frame Reception and Transmit Chaining
   -Automatic Retransmission on Collision
   -Automatically Corrects TPE Polarity Switching Problems
   -Auto NegotiationManual Full Duplex Support
Low Power CHMOS IV Technology
Ease of Use
   -Auto-Negotiation of Full Duplex
   -FunctionalityFully Compatible with ISA Plug and Play Specification
   -EEPROM Interface to Support Jumperless Designs
   -Software Structures Optimized to Reduce Processing Steps
   -Automatically Maps into Unused PC IO Locations to Help Eliminate LAN Setup Problems
   -All Software Structures Contained in One 16-Byte IO Space
   -JTAG Port for Reduced Board Testing Times
   -Automatic or Manual Switching between TPE and AUI Ports
   -Supports Eight IRQs
Power Management
   -Advanced Power Management Support by Power Down and Sleep Mode
   -Both SL Compatible SMOUT Input and Non-SL Software Parameter for Power Down Mode
160-Lead QFP Package Provides Smallest Available Form Factor
100% Backwards Software Compatible to 82595TX

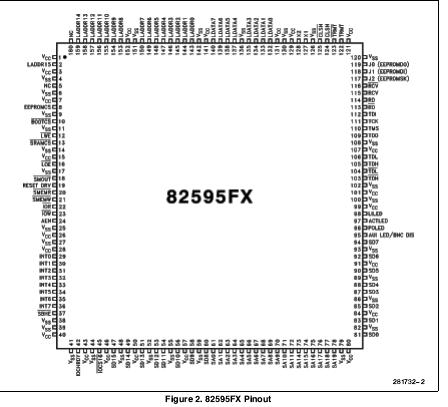

Pinout

Connection Diagram


Specifications

Case TemperatureunderBias...................... 0to+ 85
Storage Temperature .............................-65to +140
AllOutput and Supply Voltages ..............-0.5V to+ 7V (1)
AllInput Voltages ......................................-1.0V to+ 6.0V
Further information on the quality and reliability of the 82595FX may be found in the Components Quality and Reliability Handbook Order Number 210997

NOTICE This data sheet contains information on products in the sampling and initial production phases of development The specifications are subject to change without notice Verify with your local Inte  Sales office that you have the latest data sheet be-fore finalizing a design

WARNING Stressing the device beyond the ''Absolute Maximum Ratings'' may cause permanent damage These are stress ratings only Operation beyond the''Operating Conditions'' is not recommended and ex-tended exposure beyond the ''Operating Conditions''may affect device reliability
