82562G

Features: IEEE 802.3 10BASE-T/100BASE-TX compliant physical layer interface IEEE 802.3u Auto-Negotiation support Digital Adaptive Equalization control Link status interrupt capability XOR tree mode support 3-port LED support (speed, link and activity) 10BASE-T auto-polarity correction LAN Connect...

product image

82562G Picture
See larger image
SeekIC No. : 004255610 Detail

82562G: Features: IEEE 802.3 10BASE-T/100BASE-TX compliant physical layer interface IEEE 802.3u Auto-Negotiation support Digital Adaptive Equalization control Link status interrupt capability XOR tree mode...

82562G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
82562G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

IEEE 802.3 10BASE-T/100BASE-TX  compliant physical layer interface
IEEE 802.3u Auto-Negotiation support
Digital Adaptive Equalization control
Link status interrupt capability
XOR tree mode support
3-port LED support (speed, link and activity)
10BASE-T auto-polarity correction
LAN Connect Interface
Diagnostic loopback mode
1:1 transmit transformer ratio support
Low power (less than 300 mW in active transmit mode)
Reduced power in "unplugged mode" (less than 50 mW)
Automatic detection of "unplugged mode"
3.3 V device
Lead-free  48-pin Shrink Small Outline  Package for both leaded and lead-free  designs. (Devices that are lead-free are marked with a circled "e3" and have the product code prefix: LUxxxxxx).


Pinout

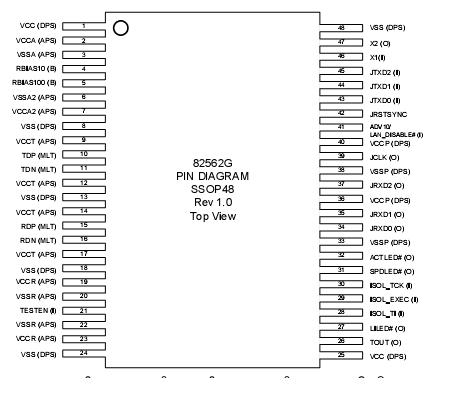

Connection Diagram


Specifications

Case Temperature under Stress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 135
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65 to 150
Supply Voltage with respect to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V to 3.45 V
Output Voltages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.50 V to 3.45 V
Input Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCC  to 3.45 V

Stresses above the listed absolute maximum ratings may cause permanent damage to the 82562G  device. This is a stress rating only and functional operations of the device at these or any other  conditions above those indicated in the operational sections of this specification is not implied.  Exposure to absolute maximum rating conditions for extended periods may affect device
reliability.
