82375SB

Features:

Provides the Bridge Between the PCI Local Bus and EISA Bus
100% PCI and EISA Compatible
   -PCI and EISA MasterSlave Interface
   -Directly Drives 10 PCI Loads and 8 EISA Slots
   -Supports PCI from 25 to 33 MHz
Data Buffers Improve Performance
   -Four 32-bit PCI-to-EISA Posted Write Buffers
   -Four 16-byte
   -EISA-to-PCI ReadWrite Line Buffers
   -EISA-to-PCI Read PrefetchEISA-to-PCI and PCI-to-EISA Write Posting
Data Buffer Management Ensures Data Coherency
   -Flush Posted Write Buffers
   -Flush or Invalidate Line Buffers
   -System-Wide Data Buffer Coherency Control
Burst Transfers on both the PCI and EISA Buses
32-Bit Data Paths
Integrated EISA Data Swap Buffers
Arbitration for PCI Devices
   -Supports Six PCI Masters
   -Fixed Rotating or a Combination of the Two
   -Supports External PCI Arbiter and Arbiter Cascading
PCI and EISA Address Decoding and Mapping
   -Positive Decode of Main Memory
   -Areas (MEMCS Generation)
   -Four Programmable PCI Memory Space Regions
   -Four Programmable PCI IO Space Regions
Programmable Main Memory Address Decoding
   -Main Memory Sizes up to 512 MBytes
   -Access Attributes for 15 Memory Segments in First 1 MByte of Main Memory
   -Programmable Main Memory Hole
Integrated 16-bit BIOS Timer
Only Available as Part of a Supported Kit

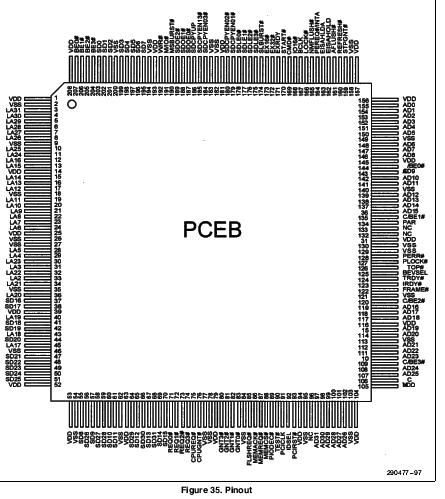

Pinout




Specifications

Case TemperatureUnder Bias........................ -65to110
Storage Temperature ....................................-65to150
Supply Voltages with
    RespecttoGround .............................-0.5Vto V_CC +0.5V
Voltage OnAnyPin ................................-0.5Vto V_CC +0.5V
Power Dissipation(fullyloaded) ...............................0.95W
Power Dissipation(four slots) .................................0.75W
NOTICE This data sheet contains information on products in the sampling and initial production phase of development The specifications are subject to
change without notice Verify with your local Inte Sales office that you have the latest data sheet be fore finalizing a design

WARNING Stressing the device beyond the ''Absolute Maximum Ratings'' may cause permanent damage These are stress ratings only Operation beyond the''Operating Conditions'' is not recommended and ex- tended exposure beyond the ''Operating Conditions'' may affect device reliability


Description

The 82375EBSB PCI-EISA Bridge (PCEB) provides the masterslave functions on both the PCI Local Bus and the EISA Bus Functioning as a bridge between the PCI and EISA buses the PCEB provides the address and data paths bus controls and bus protocol translation for PCI-to-EISA and EISA-to-PCI transfers Exten- sive data buffering in both directions increases system performance by maximizing PCI and EISA Bus efficien-cy and allowing concurrency on the two buses The PCEB's buffer management mechanism ensures data coherency The PCEB integrates central bus control functions including a programmable bus arbiter for the PCI Bus and EISA data swap buffers for the EISA Bus Integrated system functions include PCI parity genera-tion system error reporting and programmable PCI and EISA memory and IO address space mapping and decoding The PCEB also contains a BIOS Timer that can be used to implement timing loops The PCEB is intended to be used with the EISA System Component (ESC) to provide an EISA IO subsystem interface

This document describes both the 82375EB and 82375SB components Unshaded areas describe the 82375EB Shaded areas like this one describe the 82375SB operations that differ from the 82375EB
