Features:

• 80C51 central processing unit
• 8k * 8 ROM expandable externally to 64k bytes
• 256 * 8 RAM, expandable externally to 64k bytes
• Two standard 16-bit timer/counters
• Four 8-bit I/O ports
• I2C-bus serial I/O port with byte oriented master and slave functions
• Full-duplex UART facilities
• Power control modes
Idle mode
Power-down mode
• ROM code protection
• Extended frequency range: 1.2 to 24 MHz
• Three operating ambient temperature ranges:
         0 to +70°C
      40 to +85°C
      40 to +125°C


Pinout

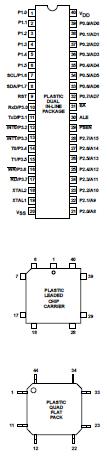

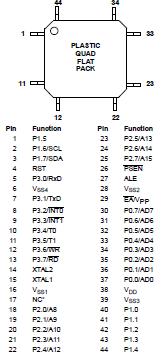

Connection Diagram Connection Diagram Connection Diagram


Specifications

PARAMETER RATING UNIT
Storage temperature range 65 to +150 °C
Voltage on any other pin to VSS 0.5 to + 6.5 V
Input, output current on any single pin ±5 mA
Power dissipation (based on package heat transfer limitations, not device power consumption) 1 W



Description



The P80C652/83C652 Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The 80C652/83C652 has the same instruction set as the 80C51. Three versions of the derivative exist:

83C652 - 8k bytes mask programmable ROM

80C652 - ROMless version87C652 - EPROM version (described in a separate chapter)

P80C652/83C652 provide architectural enhancements that make it applicable in a variety of applications for general control systems. The 8XC652 contains a non-volatile 8k * 8 read-only program memory, a volatile 256 * 8 read/write data memory, four 8-bit I/O ports, two 16-bit timer/event counters (identical to the timers of the 80C51), a multi-source, two-priority-level, nested interrupt structure, an I2C interface, UART and on-chip oscillator and timing circuits. For systems that require extra capability, the 8XC652 can be expanded using standard TTL compatible memories and logic.
