Product Details

Description



Features:

High-Performance Embedded Architecture
   - 25 MIPS Burst Execution at 25 MHz
   - 9.4 MIPS* Sustained Execution at 25 MHz
512-Byte On-Chip Instruction Cache
   - Direct Mapped
   - Parallel Load/Decode for Uncached Instruc-tions
Multiple Register Sets
   - Sixteen Global 32-Bit Registers
   - Sixteen Local 32-Bit Registers
   - Four Local Register Sets Stored On-Chip
   - Register Scoreboarding
4 Gigabyte, Linear Address Space
Pin Compatible with 80960KB
Built-in Interrupt Controller
   - 31 Priority Levels, 256 Vectors
   - 3.4 s Latency @ 25 MHz
Easy to Use, High Bandwidth 32-Bit Bus
   - 66.7 Mbytes/s Burst
   - Up to 16 Bytes Transferred per Burst
132-Lead Packages:
   - Pin Grid Array (PGA)
   - Plastic Quad Flat-Pack (PQFP)


Pinout

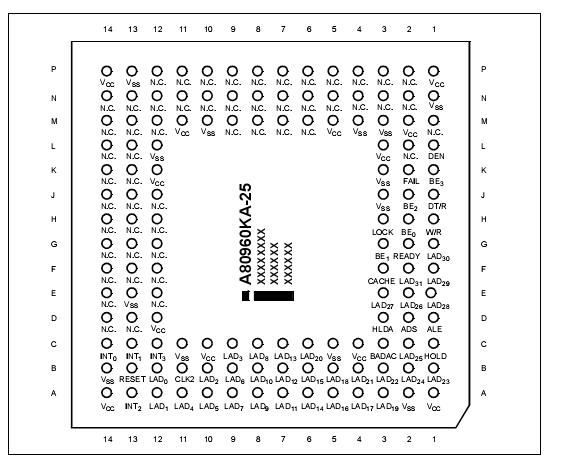

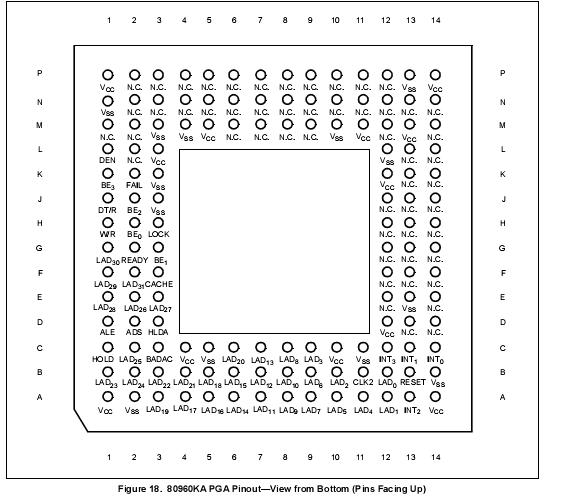

Connection Diagram Connection Diagram Connection Diagram


Specifications

Operating Temperature (PGA).............. 0 to +85 Case
                                      (PQFP) ......... 0 to +100 Case
Storage Temperature ................................    65to +150
Voltage on Any Pin.............................0.5V to VCC  +0.5V
Power Dissipation........................................2.5W (25 MHz)
NOTICE: This is a production data sheet. The specifi-cations are subject to change without notice.
*WARNING: Stressing the device beyond the "Absolute Maxi-mum Ratings" may cause permanent damage. These are stress ratings only.Operation beyond the "Operating Condi-tions" is not recommended and extended exposure beyond the "Operating Conditions" may affect device reliability.
