80186

Features: `Integrated Feature Set-Enhanced 8086-2 CPU-Clock Generator-2 Independent DMA Channels-Programmable Interrupt Controller-3 Programmable 16-bit Timers-Programmable Memory and Peripheral Chip-Select Logic-Programmable Wait State Generator-Local Bus Controller`Available in 10 MHz and 8 MHz ...

product image

80186 Picture
See larger image
SeekIC No. : 004253533 Detail

80186: Features: `Integrated Feature Set-Enhanced 8086-2 CPU-Clock Generator-2 Independent DMA Channels-Programmable Interrupt Controller-3 Programmable 16-bit Timers-Programmable Memory and Peripheral Chi...

80186 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
80186
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Integrated Feature Set
-Enhanced 8086-2 CPU
-Clock Generator
-2 Independent DMA Channels
-Programmable Interrupt Controller
-3 Programmable 16-bit Timers
-Programmable Memory and Peripheral Chip-Select Logic
-Programmable Wait State Generator
-Local Bus Controller
`Available in 10 MHz and 8 MHz Versions
`High-Performance Processor
-4 Mbyte/Sec Bus Bandwidth Interface @ 8 MHz (80186)
-5 Mbyte/Sec Bus Bandwidth Interface @ 10 MHz (80186)
` Direct Addressing Capability to 1 Mbyte of Memory and 64 Kbyte I/O
` Completely Object Code Compatible with All Existing 8086, 8088 Software
-10 New Instruction Types
` Numerics Coprocessing Capability Through 8087 Interface
` Available in 68 Pin:
-Plastic Leaded Chip Carrier (PLCC)
-Ceramic Pin Grid Array (PGA)
-Ceramic Leadless Chip Carrier (LCC)
` Available in EXPRESS
-Standard Temperature with Burn-In
-Extended Temperature Range (-40to +85)


Pinout

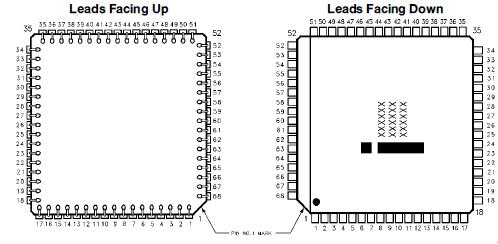

Connection Diagram


Specifications

Ambient Temperature under Bias ......0 to 70
Storage Temperature ................-65 to +150
Voltage on any Pin with
Respect to Ground.........................-1.0V to +7V
Power Dissipation ........................................3W
NOTICE: This is a production data sheet. The specifications are subject to change without notice
*WARNING: Stressing the device beyond the "Absolute Maximum Ratings'' may cause permanent damage.These are stress ratings only. Operation beyond the "Operating Conditions'' is not recommended and extended exposure beyond the "Operating Conditions'' may affect device reliability.
